HOLTEKDatasheet (PDF)

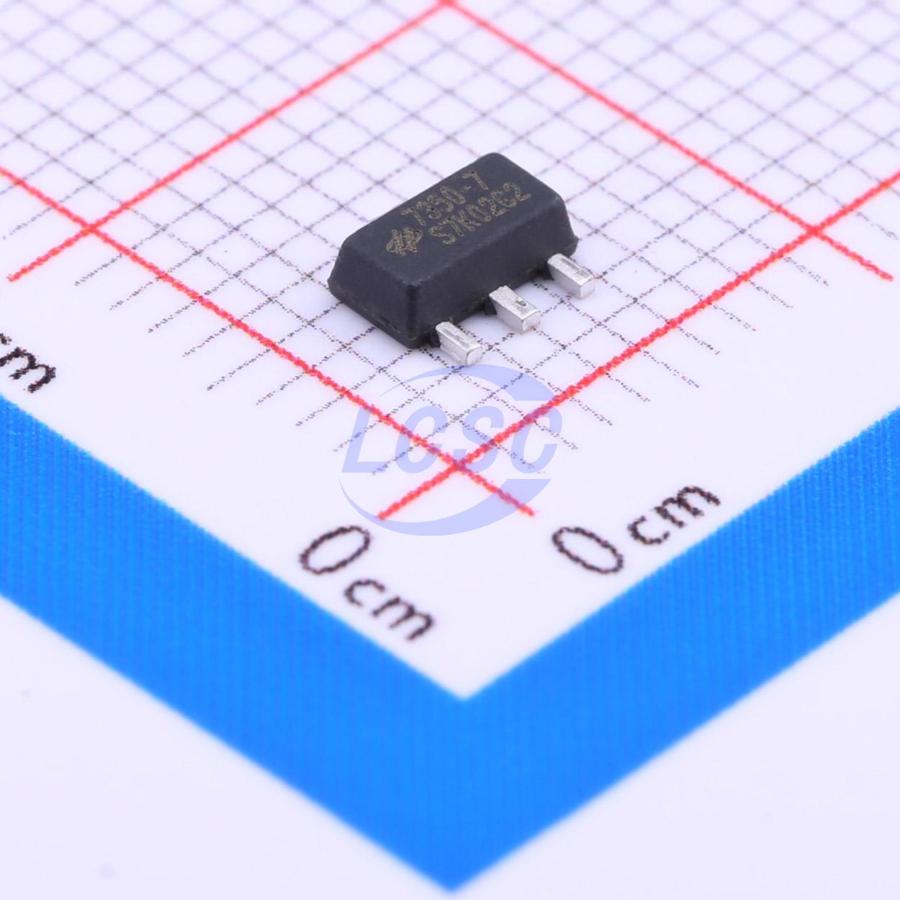

HT7350-7
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3RoHSActive
IC REG LINEAR 5V 250mA SOT-89-3
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7350-7
- Store part #
- C259487
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C259487
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.18 | ₹150.90 |
| 50+ | ₹23.93 | ₹1,196.50 |
| 150+ | ₹21.26 | ₹3,189.00 |
| 1,000+ | ₹17.15 | ₹17,150.00 |
| 2,000+ | ₹15.65 | ₹31,300.00 |
| 5,000+ | ₹14.76 | ₹73,800.00 |
5 × ₹30.18
₹150.90
excl. GST
₹178.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7350-7
₹150.90 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 250mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The HT73xx-7 series is a group of low-power, high-voltage regulators implemented in CMOS technology. CMOS technology ensures low dropout voltage and low quiescent current characteristics. The input voltage can be as high as 30V, with several fixed output voltages ranging from 2.1V to 5.0V. When the CE input pin is low, a fast discharge path pulls down the output voltage through a built-in pull-down resistor. Even if the output pin is shorted to ground, the built-in overcurrent protection circuit prevents damage to the device. The over-temperature protection circuit ensures that the junction temperature will not exceed 150°C.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- High input voltage (up to 30V)
- Output voltage accuracy: ±2%
- Overcurrent protection
- Over-temperature protection
- Chip enable/disable function
- Package types: 3-pin SOT89, 8-pin SOP-EP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7350-2#C182027HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 20,560 | ₹32.77 · 20,560 in stock | View |
 | SSP7903P50PR#C2965588Siproin · SOT-89 | Siproin | SOT-89 | 1,590 | ₹31.41 · 1,590 in stock | View |
 | HG7350MK-1/TR#C2926280HGSEMI · SOT-89 | HGSEMI | SOT-89 | 950 | ₹9.51 · 950 in stock | View |
 | 7333-1#C42401020IDCHIP · SOT-89 | IDCHIP | SOT-89 | 250 | ₹8.94 · 250 in stock | View |
 | 7350-1#C42401023IDCHIP · SOT-89 | IDCHIP | SOT-89 | 20 | ₹8.89 · 20 in stock | View |
