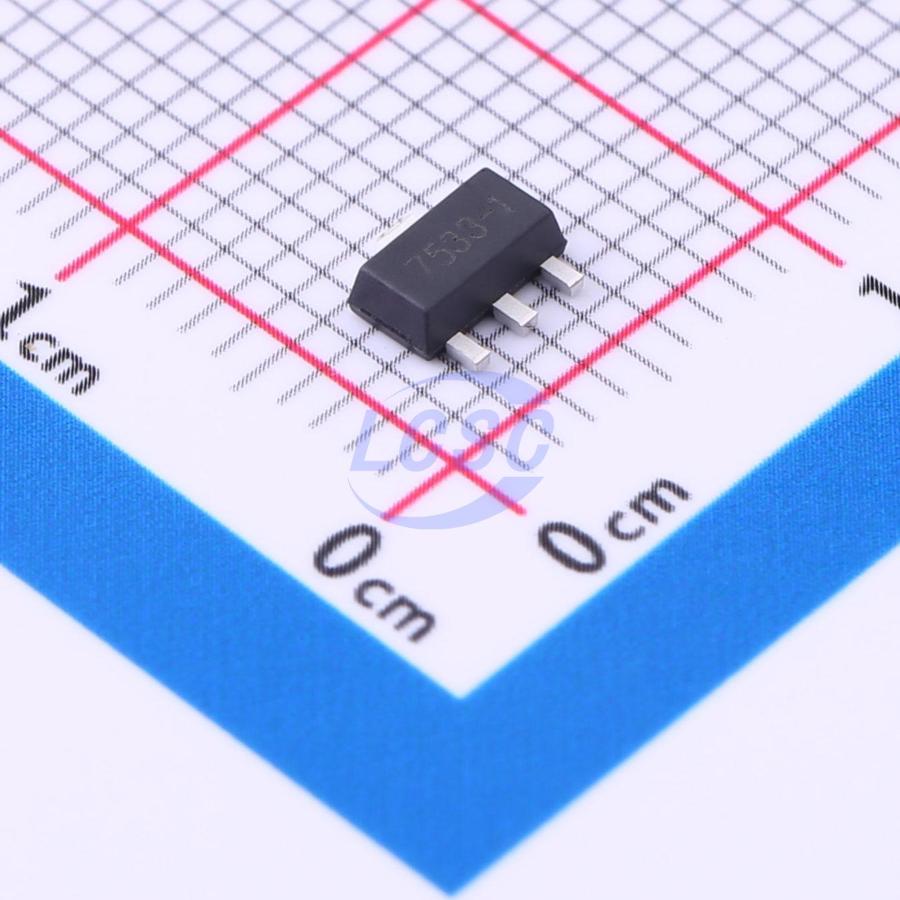

HT7533 30V
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
SOT-89ROHS CompliantActive
LDO High-Voltage Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- HT7533 30V
- Store part #
- C5296738
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,92,850 in stock
#C5296738
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.73 | ₹1,119.00 |
| 1,000+ | ₹3.43 | ₹3,430.00 |
| 5,000+ | ₹3.08 | ₹15,400.00 |
| 10,000+ | ₹2.90 | ₹29,000.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7533 30V
₹54.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
HT75XX-1 series are high-voltage LDO regulators fabricated using CMOS process, with a maximum input voltage of 30V and output voltage range of 1.5V~12.0V. Key features include high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: ≤3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50ppm/°C
- High input voltage: up to 30V
- High output voltage accuracy: ±3% tolerance
- Package: TO-92, SOT89-3, SOT-23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117S-3.3#C917152JSMSEMI · SOT-89-3 | JSMSEMI | SOT-89-3 | 7,345 | ₹15.04 · 7,345 in stock | View |
