GUOXIN JIAPIN SEMICONDUCTORDatasheet (PDF)

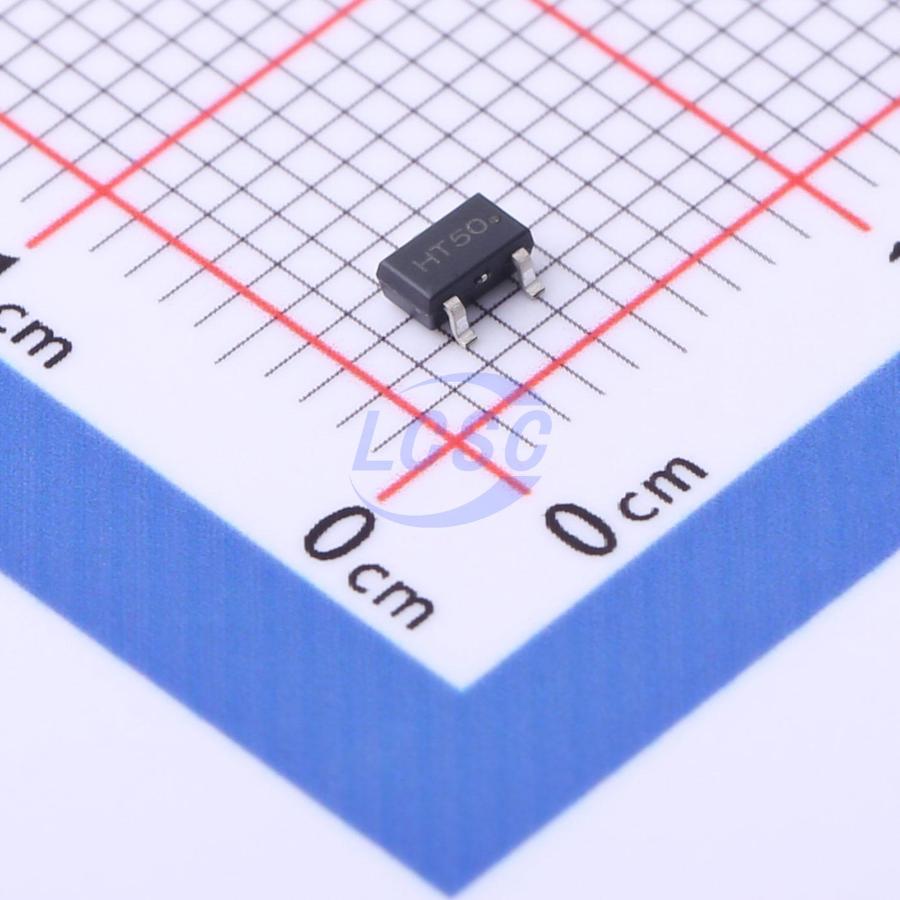

HT7550
Linear Voltage Regulator IC Positive Fixed 1 Output 60mA 100mA SOT-23-3L
SOT-23-3LRoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- HT7550
- Store part #
- C2684642
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C2684642
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.55 | ₹91.00 |
| 200+ | ₹3.68 | ₹736.00 |
| 600+ | ₹3.20 | ₹1,920.00 |
| 3,000+ | ₹2.55 | ₹7,650.00 |
| 9,000+ | ₹2.30 | ₹20,700.00 |
| 21,000+ | ₹2.16 | ₹45,360.00 |
20 × ₹4.55
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7550
₹91.00 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 60mA;100mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.043 g
Overview
The HT75XX series are low-power, high-voltage LDO regulators fabricated with CMOS technology, supporting input voltages up to 18V and output voltages ranging from 2.0V to 5.0V. Key features include high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: ≤3 μA
- Low dropout voltage: typical 0.1V
- Low temperature coefficient: typical 50 ppm/℃
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
