HOLTEKDatasheet (PDF)

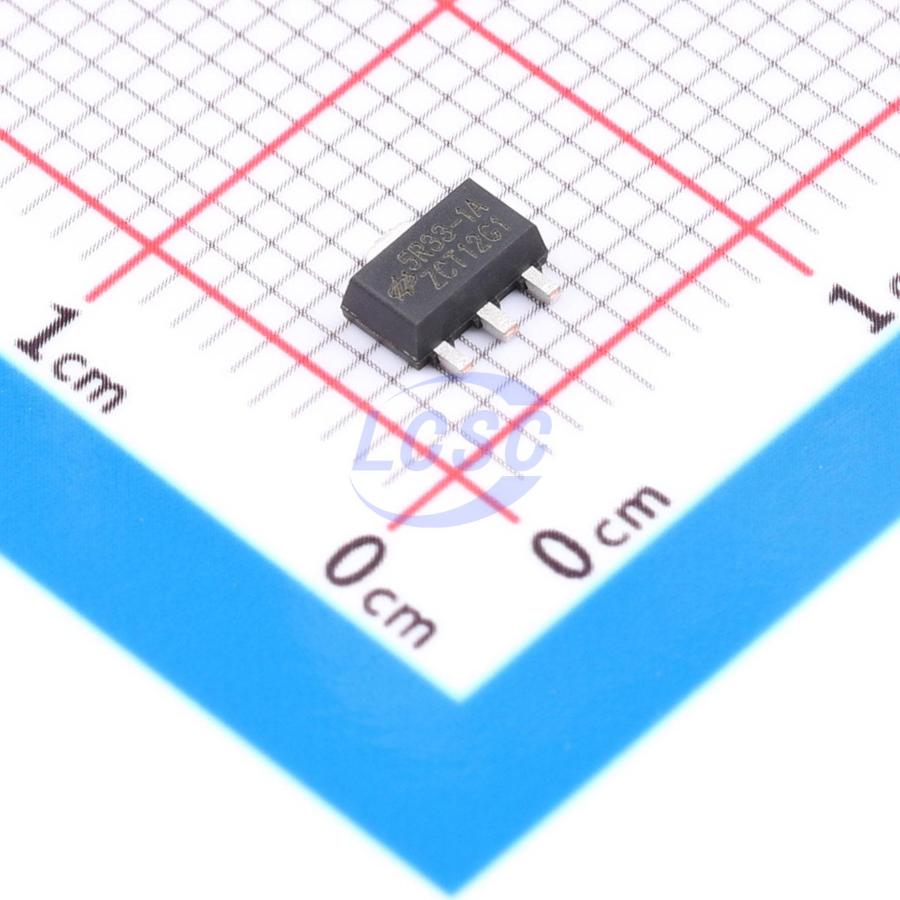

HT75R33-1A
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT75R33-1A
- Store part #
- C53223865
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,52,185 in stock
#C53223865
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.46 | ₹82.30 |
| 50+ | ₹13.12 | ₹656.00 |
| 150+ | ₹11.46 | ₹1,719.00 |
| 1,000+ | ₹10.20 | ₹10,200.00 |
| 2,000+ | ₹9.19 | ₹18,380.00 |
| 5,000+ | ₹8.69 | ₹43,450.00 |
5 × ₹16.46
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT75R33-1A
₹82.30 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Built-in soft-start;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
The HT75Rxx-1 series are three-terminal, low-power, high-voltage regulators capable of delivering 150mA output current, with input voltages up to 30V, and multiple fixed output voltage options ranging from 2.1V to 12.0V. This series incorporates a soft-start function to control the output slew rate and prevent overshoot during power-up. Although primarily designed as fixed voltage regulators, they can be combined with external components to achieve variable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 30V
- Output voltage accuracy: ±1%
- Low quiescent current: 1μA (typical)
- High output current: 150mA
- Soft-start function
- Compatible with 1μF ceramic output capacitor
- Package types: 3-pin SOT89, 5-pin SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SE8733K2-HF#C969997Seaward Elec · SOT-89-3 | Seaward Elec | SOT-89-3 | 50 | ₹20.19 · 50 in stock | View |
 | HT7333-3#C84207HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 3,540 | ₹34.94 · 3,540 in stock | View |
 | 7533-1#C6718422DOWO · SOT-89 | DOWO | SOT-89 | 265 | ₹10.29 · 265 in stock | View |
 | PJ75BL33SQ#C42436941PJSEMI · SOT-89 | PJSEMI | SOT-89 | 60 | ₹11.07 · 60 in stock | View |
 | MG7533N3#C41380427Megain · SOT-89-3 | Megain | SOT-89-3 | 2,140 | ₹5.00 · 2,140 in stock | View |
