HOLTEKDatasheet (PDF)

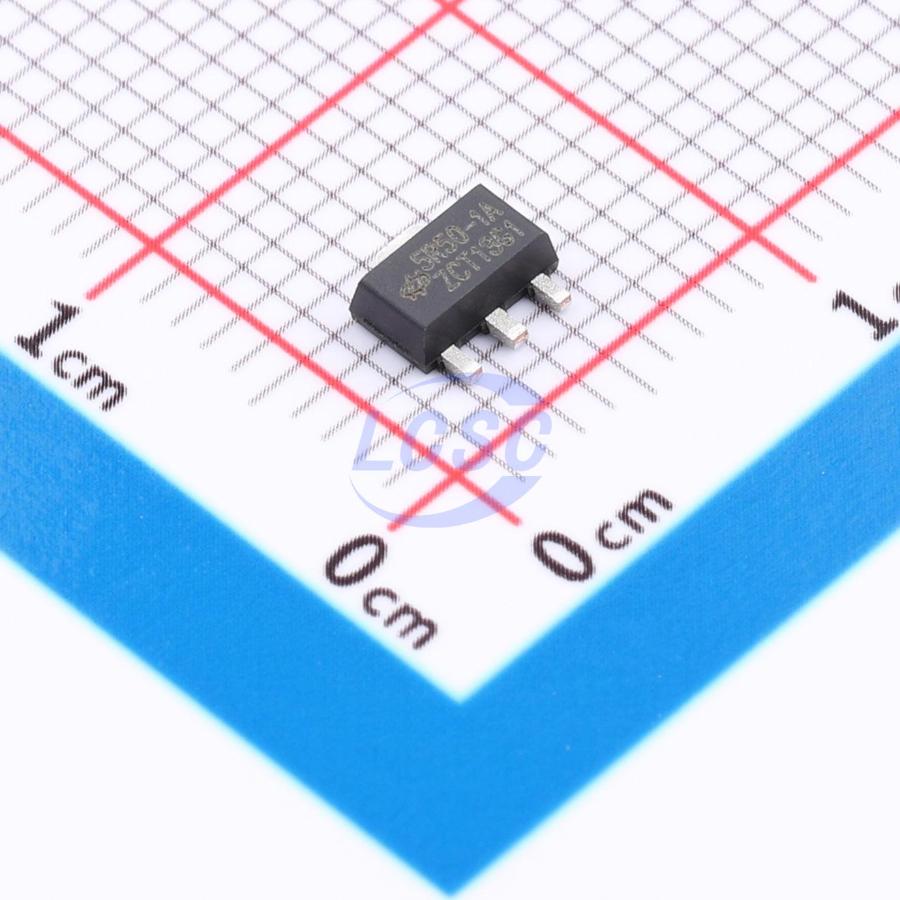

HT75R50-1A
5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT75R50-1A
- Store part #
- C53223866
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,900 in stock
#C53223866
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.29 | ₹76.45 |
| 50+ | ₹12.20 | ₹610.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 1,000+ | ₹9.47 | ₹9,470.00 |
| 2,000+ | ₹8.55 | ₹17,100.00 |
| 5,000+ | ₹8.08 | ₹40,400.00 |
5 × ₹15.29
₹76.45
excl. GST
₹90.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT75R50-1A
₹76.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Built-in soft-start;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
The HT75Rxx-1 series are three-terminal, low-power, high-voltage regulators capable of delivering 150mA output current, with input voltages up to 30V, and multiple fixed output voltage options ranging from 2.1V to 12.0V. This series incorporates a soft-start function to control the output slew rate and prevent overshoot during power-up. Although primarily designed as fixed voltage regulators, they can be combined with external components to achieve variable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 30V
- Output voltage accuracy: ±1%
- Low quiescent current: 1μA (typical)
- High output current: 150mA
- Soft-start function
- Compatible with 1μF ceramic output capacitor
- Package types: 3-pin SOT89, 5-pin SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550-3#C259515HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 2,990 | ₹23.43 · 2,990 in stock | View |
 | HT7350-3#C105485HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | On request | ₹30.83 · 0 in stock | View |
 | TP375C50T3#C3021138TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,010 | ₹20.93 · 1,010 in stock | View |
 | PJ75BL50SQ#C5456751PJSEMI · SOT-89 | PJSEMI | SOT-89 | 540 | ₹9.96 · 540 in stock | View |
 | MG7550N3#C41380429Megain · SOT-89-3 | Megain | SOT-89-3 | 3,360 | ₹5.11 · 3,360 in stock | View |
