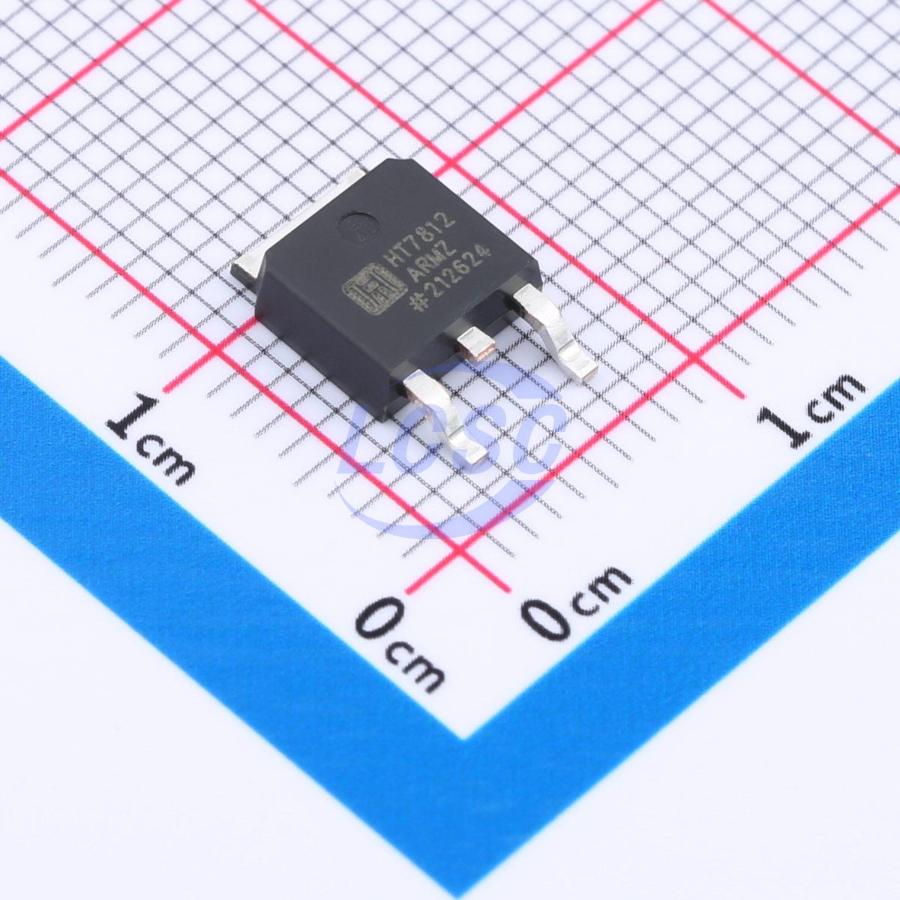

HT7812ARMZ
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-252
TO-252RoHSActive
Positive Voltage Regulator
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT7812ARMZ
- Store part #
- C5336216
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,698 in stock
#C5336216
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.95 | ₹35.95 |
| 10+ | ₹28.31 | ₹283.10 |
| 30+ | ₹25.04 | ₹751.20 |
| 100+ | ₹20.96 | ₹2,096.00 |
| 500+ | ₹19.13 | ₹9,565.00 |
| 1,000+ | ₹16.68 | ₹16,680.00 |
1 × ₹35.95
₹35.95
excl. GST
₹42.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT7812ARMZ
₹35.95 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.3mA
- Output Configuration
- Positive
- Operating Voltage
- 27V
- Output Current
- 1.5A
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.51 g
Overview
Applications
- Post regulator for switching DC/DC converter
- Bias supply for analog circuits
Key features
- The HT78XX is integrated linear positive regulator with three terminals.
- The HT78XX offer several fixed output voltages making them useful in wide range of applications.
- When used as a zener diode/resistor combination replacement, the HT78XX usually results in an effective output impedance improvement of two orders of magnitude, lower quiescent current.
- The HT78XX is available in the TO - 252, TO - 220 & TO - 263 packages.
- Output Current of 1.5A
- Output Voltage Tolerance of 5%
- Internal thermal overload protection
- Internal Short - Circuit Limited
- No External Component
- Output Voltage 5.0V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 24V
- Offer in plastic TO - 252, TO - 220 & TO - 263
- Direct Replacement for HT78XX
