TDSEMIC

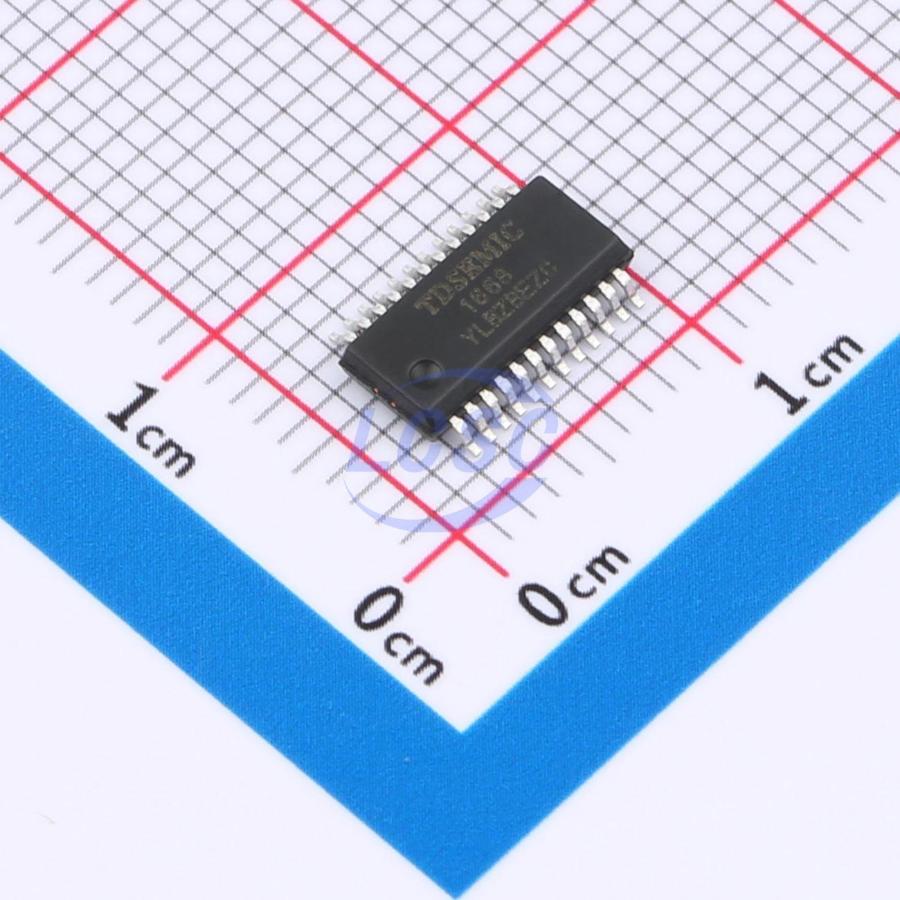

HTM1668-SSOP24

3V~5.5V 1MHz 20mA 80mA SSOP-24 Display Drivers RoHS

SSOP-24ROHS CompliantActive

3-wire serial common-cathode LED driver control circuit

Manufacturer: TDSEMIC
Manufacturer part #: HTM1668-SSOP24
Store part #: C47088806
Package / case: SSOP-24
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,255 in stock

#C47088806

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹18.89	₹94.45
50+	₹14.76	₹738.00
150+	₹12.69	₹1,903.50
500+	₹11.14	₹5,570.00
2,500+	₹9.90	₹24,750.00
5,000+	₹9.27	₹46,350.00

Quantity (min 5, multiples of 5)

5 × ₹18.89

₹94.45

excl. GST

₹111.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

HTM1668-SSOP24

₹94.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~5.5V
Configuration: 10 Segment x 7 Digit;13 Segment x 4 Digit
Operating Temperature: -20℃~+70℃
Clock Frequency: 1MHz
Pd - Power Dissipation: 400mW
Features: Built-in display RAM;PWM dimming
Segment Drive Current: 20mA
Digit Drive Current: 80mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.27 g

Overview

HTM1668-ssop24 is a dedicated common-cathode LED driver control IC with a 3-wire serial interface, capable of driving 10-segment 7-digit or 13-segment 4-digit LED displays, with an integrated 10×2-key keyboard scan function. The chip features a built-in RC oscillator and display RAM, supports 8-level display brightness software adjustment, and is suitable for a wide range of LED display panel applications.
