VBsemi ElecDatasheet (PDF)

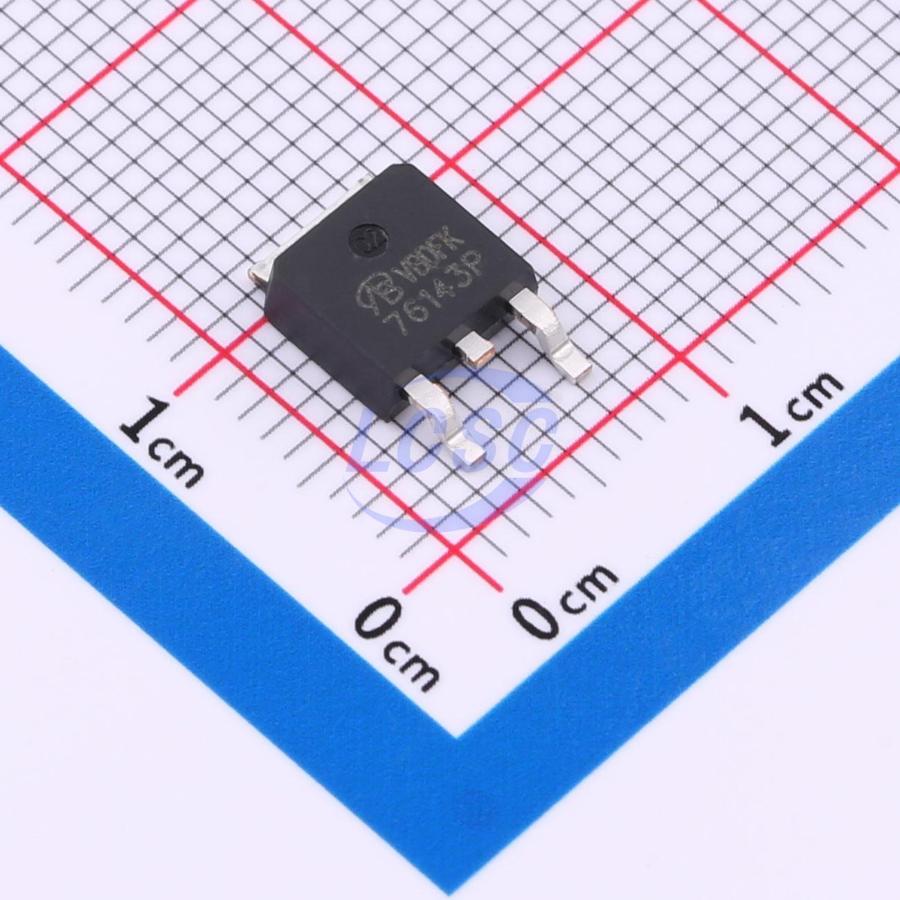

HUF76143P3-VB
N-Channel 30V 100A 235W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HUF76143P3-VB
- Store part #
- C22389676
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389676
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.92 | ₹609.20 |
| 30+ | ₹53.57 | ₹1,607.10 |
| 100+ | ₹46.21 | ₹4,621.00 |
| 500+ | ₹41.81 | ₹20,905.00 |
| 1,000+ | ₹39.49 | ₹39,490.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HUF76143P3-VB
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Pd - Power Dissipation
- 235W
- RDS(on)
- 2mΩ@10V;3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 151nC@10V;71.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.51 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 4805NG-VB TO252#C22389830VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹75.62 · 20 in stock | View |
 | AP85U03GH-HF-VB#C558082VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹73.21 · 30 in stock | View |
 | AOD438-VB#C693174VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 46 | ₹78.98 · 46 in stock | View |
 | VBZE70N03#C700657VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹78.56 · 4 in stock | View |
 | VBZE90N03#C700664VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹94.74 · 4 in stock | View |
