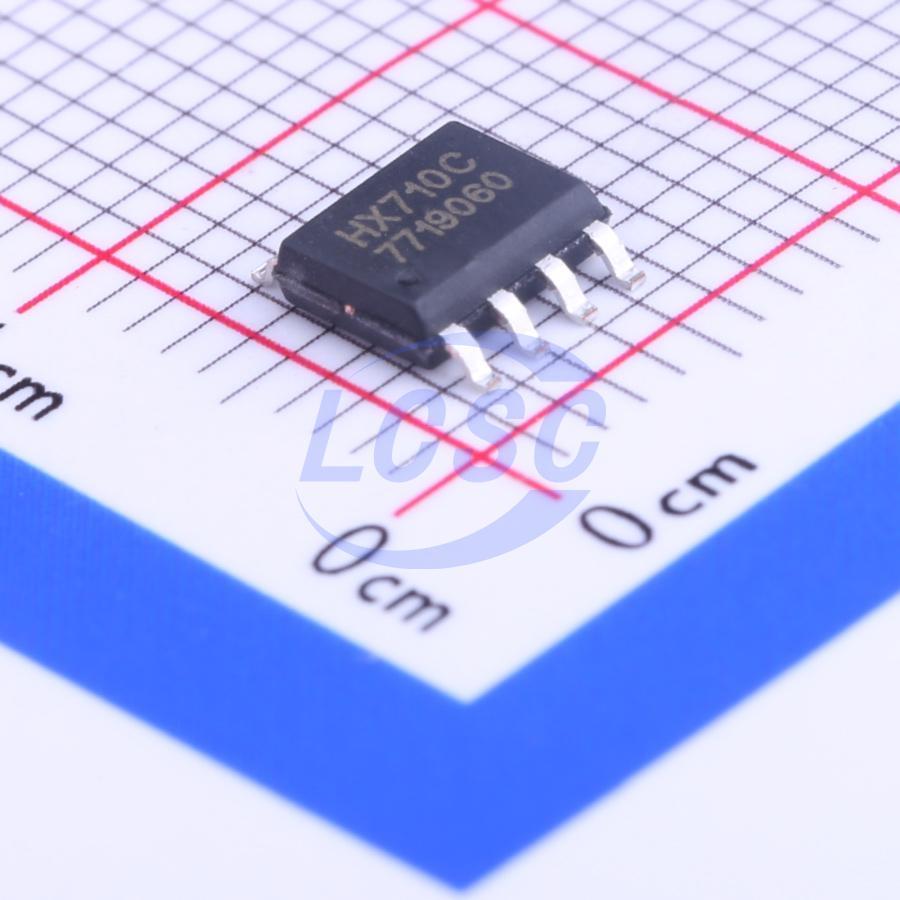

HX710C
24 Bit Analog to Digital Converter SOP-8
SOP-8RoHSActive
24-bit Analog-to-Digital (A/D) converter chip with sensor power switch
- Manufacturer
- Avia Semicon (Xiamen)
- Manufacturer part #
- HX710C
- Store part #
- C124156
- Package / case
- SOP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,625 in stock
#C124156
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.06 | ₹240.30 |
| 50+ | ₹37.34 | ₹1,867.00 |
| 200+ | ₹33.68 | ₹6,736.00 |
| 500+ | ₹27.94 | ₹13,970.00 |
| 2,500+ | ₹25.39 | ₹63,475.00 |
| 5,000+ | ₹23.85 | ₹1,19,250.00 |
5 × ₹48.06
₹240.30
excl. GST
₹283.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
HX710C
₹240.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- Serial port
- Quiescent Current (Iq)
- 1.2mA
- Voltage - Supply
- 2.6V~5.5V
- Number of Channels
- 1
- Voltage Reference
- External
- Clock/Oscillator
- Built-in
- Features
- Power-on reset
- Resolution(Bits)
- 24;10Hz;40Hz
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
The HX710C is a 24-bit A/D converter IC designed for high-precision electronic scales. Compared to similar chips, it offers higher integration, faster response speed, and stronger noise immunity, reducing the overall cost of electronic scales while improving system performance and reliability.
Applications
- Electronic scale
Key features
- Proprietary IC technology
- High integration, fast response, strong noise immunity
- On-chip sensor power switch
- On-chip low-noise amplifier with gain of 128
- On-chip clock oscillator, no external components required
- Power-on auto-reset circuit
- Simple digital control and serial communication: all control via pin inputs, no on-chip register programming required
- Selectable output data rate: 10Hz or 40Hz
- Simultaneous rejection of 50Hz and 60Hz power line interference
- Power consumption: typical operating current 1.2mA, power-down current <1μA
- Supply voltage range: 2.6~5.5V
- Operating temperature range: -40~+85°C
- SOP-8 or DIP-8 package, 8-pin
