hengjiaxingDatasheet (PDF)

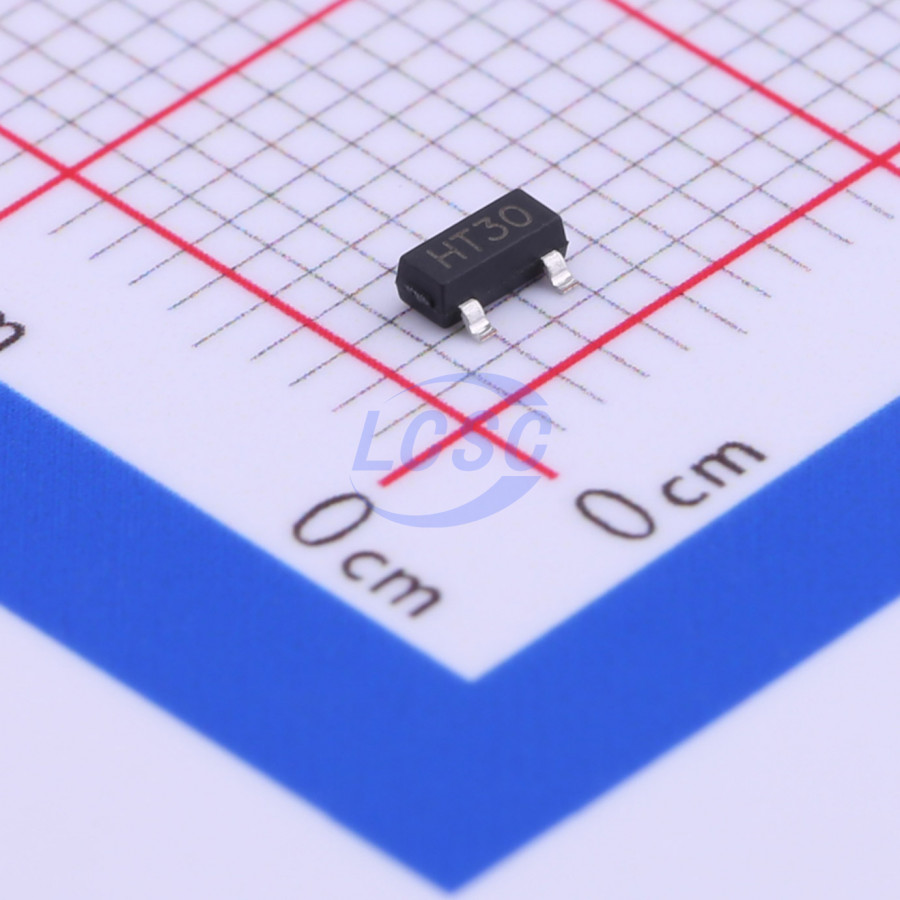

HX7130
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 3V 100mA SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7130
- Store part #
- C296190
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C296190
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.08 | ₹61.60 |
| 200+ | ₹2.43 | ₹486.00 |
| 600+ | ₹2.08 | ₹1,248.00 |
| 3,000+ | ₹1.71 | ₹5,130.00 |
| 9,000+ | ₹1.52 | ₹13,680.00 |
| 21,000+ | ₹1.42 | ₹29,820.00 |
20 × ₹3.08
₹61.60
excl. GST
₹72.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX7130
₹61.60 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 100mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The HX71XX series are low-power, high-voltage linear regulators fabricated using CMOS process technology, supporting a maximum input voltage of 18V and an output voltage range of 2–5V. Key features include high output voltage accuracy, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: typical 0.1V
- Low temperature coefficient: typical 50 ppm/℃
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
