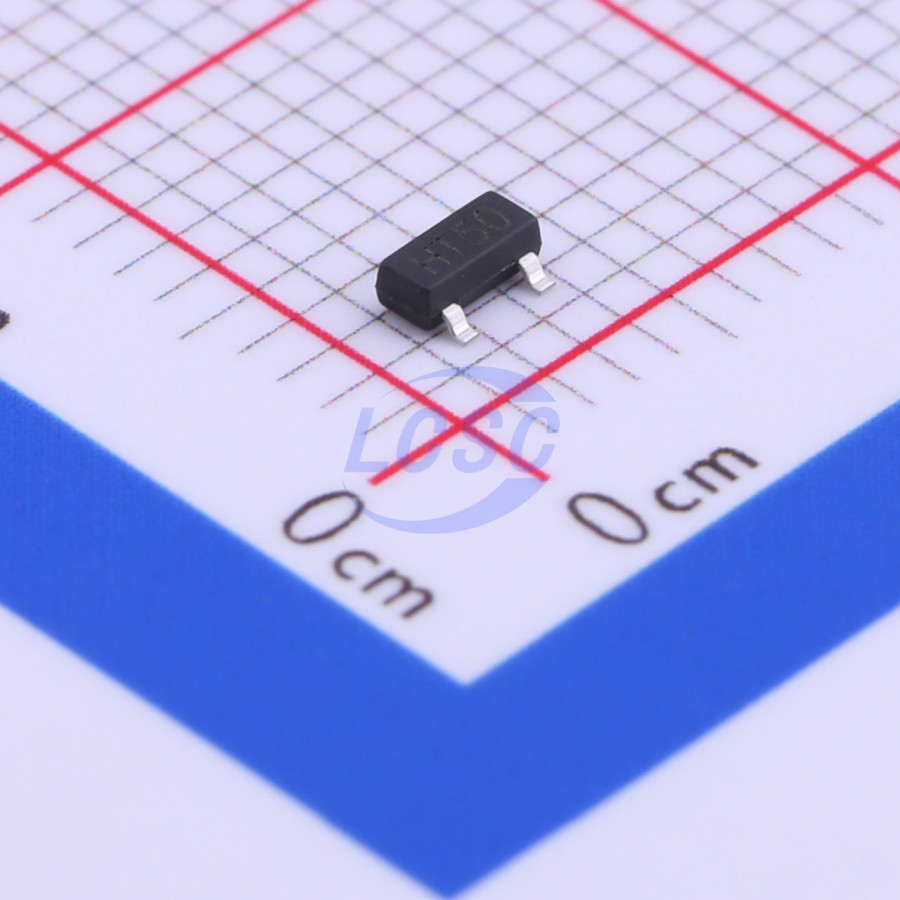

HX7550
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 5V 100mA SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7550
- Store part #
- C296146
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C296146
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.93 | ₹59.30 |
| 100+ | ₹4.72 | ₹472.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 3,000+ | ₹3.49 | ₹10,470.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.93
₹59.30
excl. GST
₹69.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX7550
₹59.30 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 100mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The HX75XX series are low-power, high-voltage regulators fabricated using CMOS process technology, supporting a maximum input voltage of 18V and an output voltage range of 2.0V ~ 5.0V. They feature high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50 ppm/℃
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX7150#C296178hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 220 | ₹3.68 · 220 in stock | View |
 | HT7540#C2984881hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 610 | ₹5.86 · 610 in stock | View |
 | HT7150H23#C2984958hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | On request | ₹5.91 · 0 in stock | View |
