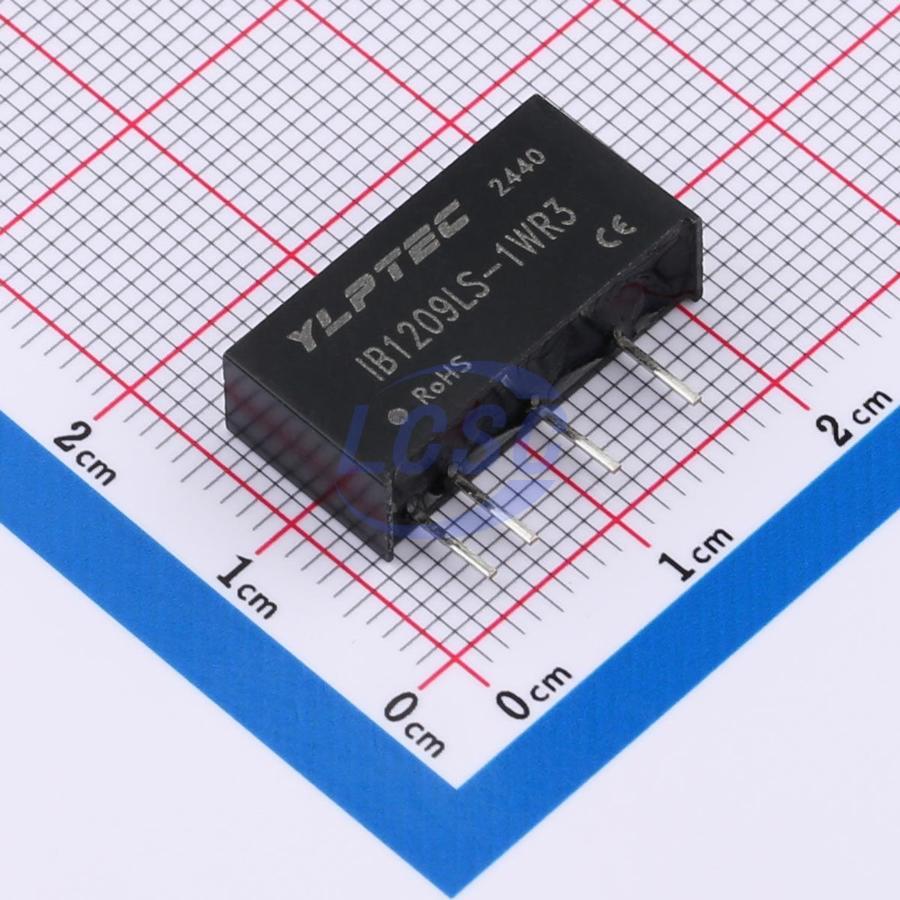

IB1209LS-1WR3
Isolated Module DC DC Converter Buck 1 Output 9V 111mA 11.4V~12.6V Input
1W isolated regulated single-output DC/DC power module with constant voltage input
- Manufacturer
- YLPTEC
- Manufacturer part #
- IB1209LS-1WR3
- Store part #
- C22751318
- Package / case
- SIP,19.5x6mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C22751318
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.64 | ₹250.64 |
| 10+ | ₹212.05 | ₹2,120.50 |
| 25+ | ₹187.99 | ₹4,699.75 |
| 100+ | ₹163.27 | ₹16,327.00 |
| 500+ | ₹152.21 | ₹76,105.00 |
| 1,000+ | ₹147.22 | ₹1,47,220.00 |
1 × ₹250.64
₹250.64
excl. GST
₹295.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IB1209LS-1WR3
₹250.64 for 1 + GST
Specifications
- Output Voltage
- 9V
- Ripple Noise
- 30mVp-p
- Type
- Plastic encapsulated type
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 3mA
- Voltage - Supply
- 11.4V~12.6V
- Capacitive Load(Max)
- 100uF
- Number of Outputs
- 1
- Iout
- 111mA
- Height
- 10mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Output Power
- 1W
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Conversion Efficiency
- 74%
- Length
- 19.5mm
- Width
- 6mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
The IB_LS-1WR3 series is a compact, high-efficiency, ultra-low power, regulated voltage input, isolated regulated single-output DC/DC power module. This series is specifically designed for on-board power supply systems that require generating an isolated voltage rail from the input power supply.
Applications
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay driver circuits
- Data switching circuit applications
Key features
- Fixed voltage input, isolated regulated single output, 1W power
- Isolation voltage: 1500VDC
- Low no-load power consumption: 0.025W (Typ.)
- Efficiency: up to 84%
- Operating temperature: -40°C~+85°C
- MTBF ≥3,500,000 Hrs
- Output short-circuit protection: continuous short-circuit protection, auto-recovery
- Compact SIP package, plastic enclosure
- Industry-standard pinout
