InfineonDatasheet (PDF)

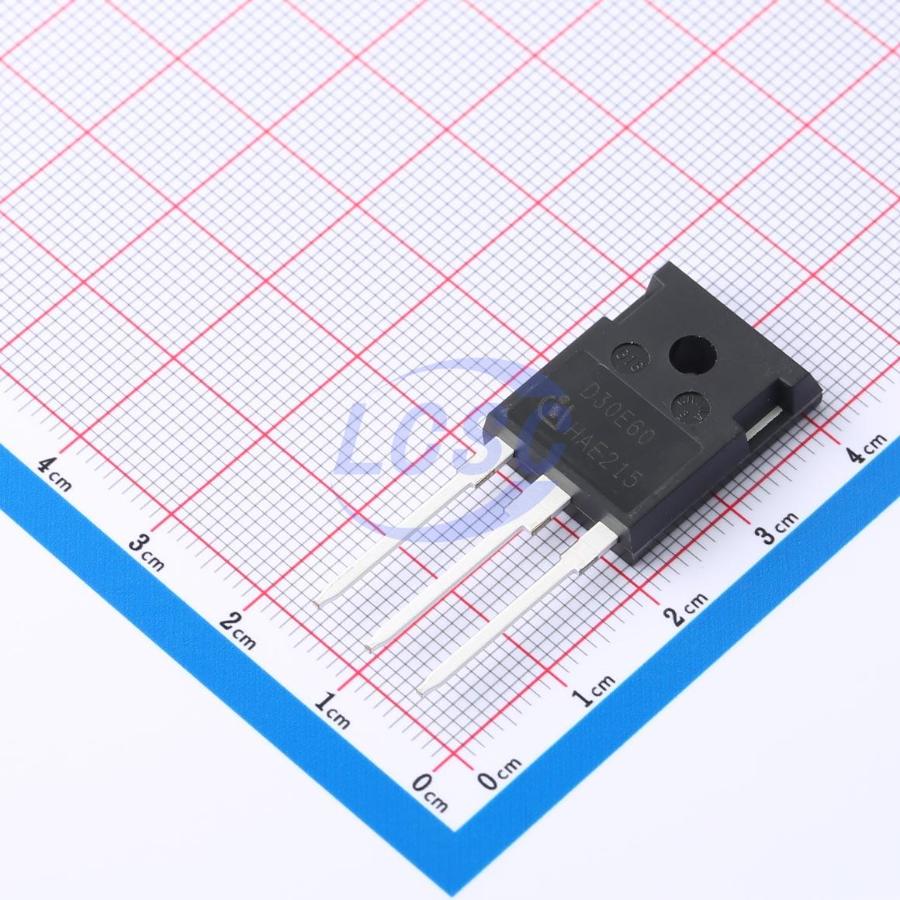

IDW30E60
Diode Independent 600V 30A Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
DIODE GP 600V 30A TO-247-3
- Manufacturer
- Infineon
- Manufacturer part #
- IDW30E60
- Store part #
- C535950
- Package / case
- TO-247-3
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C535950
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹249.46 | ₹249.46 |
| 10+ | ₹211.22 | ₹2,112.20 |
| 30+ | ₹187.31 | ₹5,619.30 |
| 90+ | ₹162.76 | ₹14,648.40 |
| 510+ | ₹151.68 | ₹77,356.80 |
| 990+ | ₹146.89 | ₹1,45,421.10 |
1 × ₹249.46
₹249.46
excl. GST
₹294.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IDW30E60
₹249.46 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 143ns
- Operating Junction Temperature Range
- -40℃~+175℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Pd - Power Dissipation
- 143W
- Voltage - Forward(Vf@If)
- 1.65V@30A
- Reverse Leakage Current (Ir)
- 40uA@600V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.369 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IDW30E65D1#C535952Infineon · TO-247-3 | Infineon | TO-247-3 | 154 | ₹261.45 · 154 in stock | View |
 | IDW40E65D1#C535956Infineon · TO-247-3 | Infineon | TO-247-3 | 16 | ₹381.62 · 16 in stock | View |
 | IDW75D65D1#C535963Infineon · TO-247-3 | Infineon | TO-247-3 | 52 | ₹730.15 · 52 in stock | View |
| IDW50E60#C535961Infineon · TO-247-3 | Infineon | TO-247-3 | 24 | ₹411.14 · 24 in stock | View | |
 | IDFW40E65D1E#C535850Infineon · TO-247-3 | Infineon | TO-247-3 | 219 | ₹583.23 · 219 in stock | View |
