InfineonDatasheet (PDF)

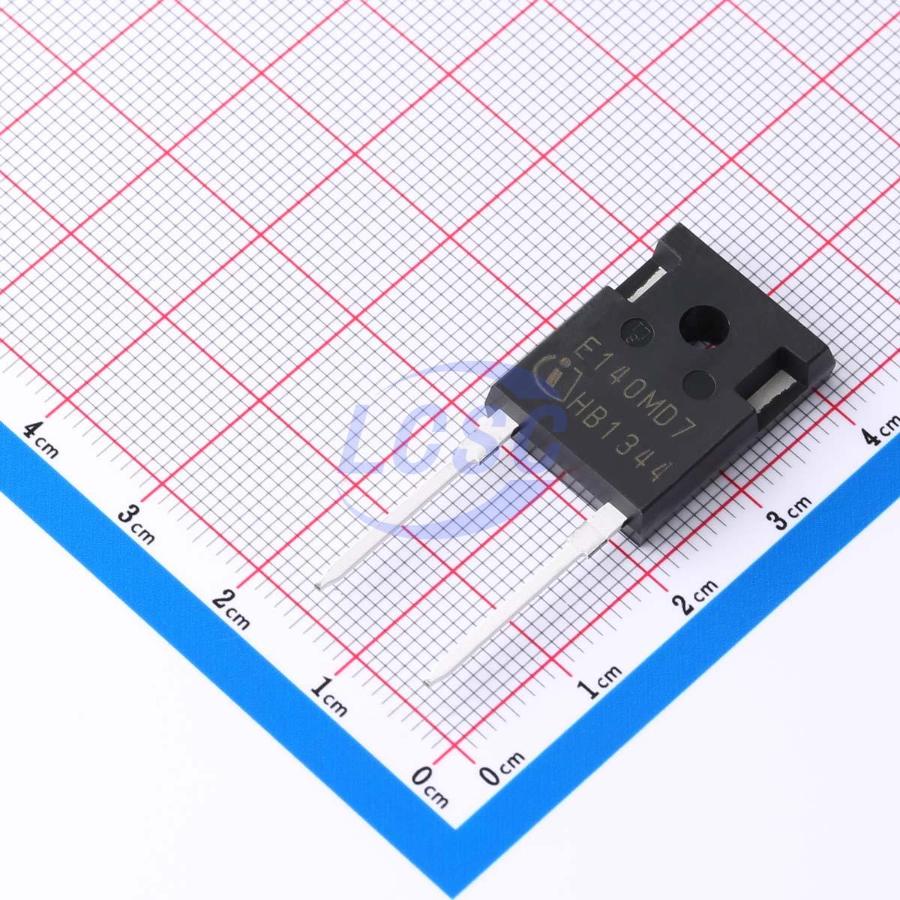

IDWD140E120D7XKSA1
225ns 1 Independent 1.2kV 3V@140A 140A TO-247-2 Single Diodes RoHS
TO-247-2ROHS3 CompliantActive
Diode 1200V 140A TO-247-2
- Manufacturer
- Infineon
- Manufacturer part #
- IDWD140E120D7XKSA1
- Store part #
- C22443486
- Package / case
- TO-247-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22443486
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹993.65 | ₹993.65 |
| 10+ | ₹977.13 | ₹9,771.30 |
| 30+ | ₹966.25 | ₹28,987.50 |
| 100+ | ₹955.15 | ₹95,515.00 |
1 × ₹993.65
₹993.65
excl. GST
₹1,172.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 240 per tube
IDWD140E120D7XKSA1
₹993.65 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 225ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Pd - Power Dissipation
- 561W
- Voltage - Forward(Vf@If)
- 3V@140A
- Reverse Leakage Current (Ir)
- 20uA
- Non-Repetitive Peak Forward Surge Current
- 462A
- Current - Rectified
- 140A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 240 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.61 g
Overview
Applications
- String inverters
- Electric vehicle charging
- Heat pumps
Key features
- VRRM = 1200 V
- IF = 140 A
- 1200 V emitter-controlled technology
- Maximum junction temperature Tvjmax = 175°C
- Low forward voltage (VF)
- Low reverse recovery charge
- Ultrafast recovery time
- Soft recovery characteristics
- Lead-free lead plating; RoHS compliant
- Moisture-resistant design
