IKSEMICONDatasheet (PDF)

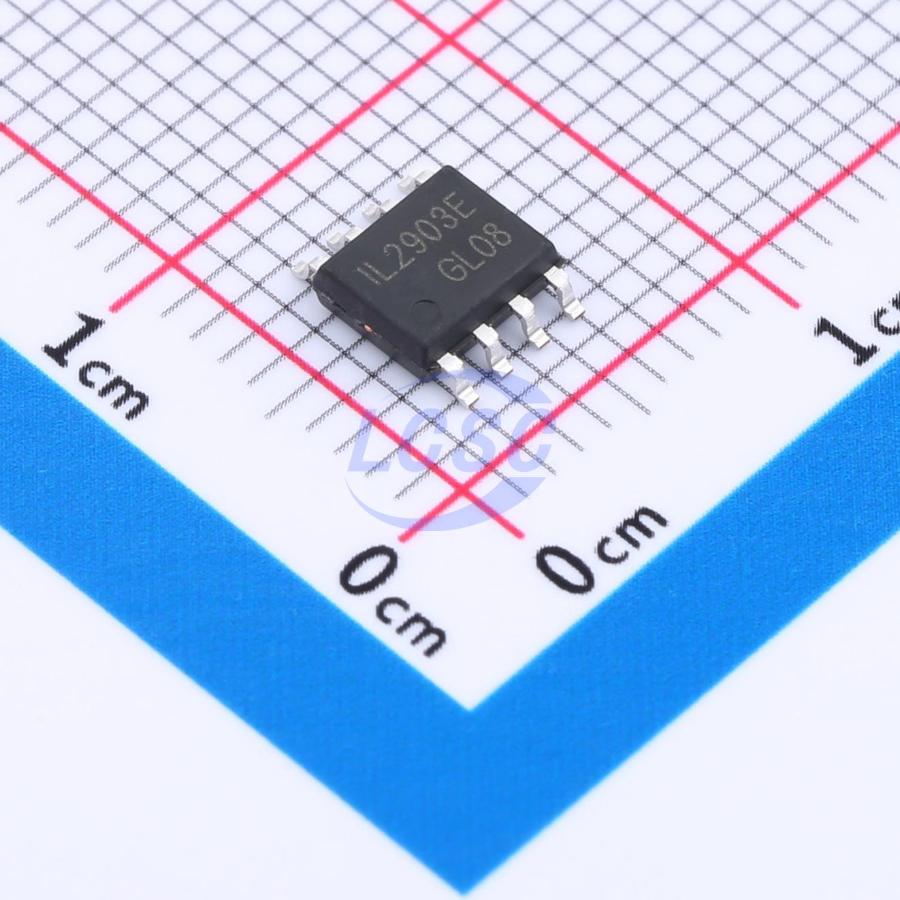

IL2903EDT
5mV 400nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Low Power Low Offset Voltage Dual Comparators
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IL2903EDT
- Store part #
- C5157597
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,785 in stock
#C5157597
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.04 | ₹125.20 |
| 50+ | ₹20.12 | ₹1,006.00 |
| 150+ | ₹18.02 | ₹2,703.00 |
| 500+ | ₹15.39 | ₹7,695.00 |
| 2,500+ | ₹13.63 | ₹34,075.00 |
| 5,000+ | ₹12.93 | ₹64,650.00 |
5 × ₹25.04
₹125.20
excl. GST
₹147.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IL2903EDT
₹125.20 for 5 + GST
Specifications
- Features
- ESD protection
- Dual Supply
- 2.5V~15V;-15V~-2.5V
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 400nA
- Quiescent Current
- 1mA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 300ns
- Number of Channels
- 2
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 5V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The IL2903 / IL2903E consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages.
Applications
- limit comparators
- simple analog to digital converters
- pulse, square wave and time delay generators
- wide range VCO
- MOS clock timers
- multi-vibrators
- high voltage digital logic gates
Key features
- Single or Split Supply Operation
- Low Input Bias Current
- Low Input Offset Current
- Input Common Mode Voltage Range to GND
- Low Output Saturation Voltage
- TTL and CMOS Compatible
- IL2903E AEC Q100 Qualified
