TE ConnectivityDatasheet (PDF)

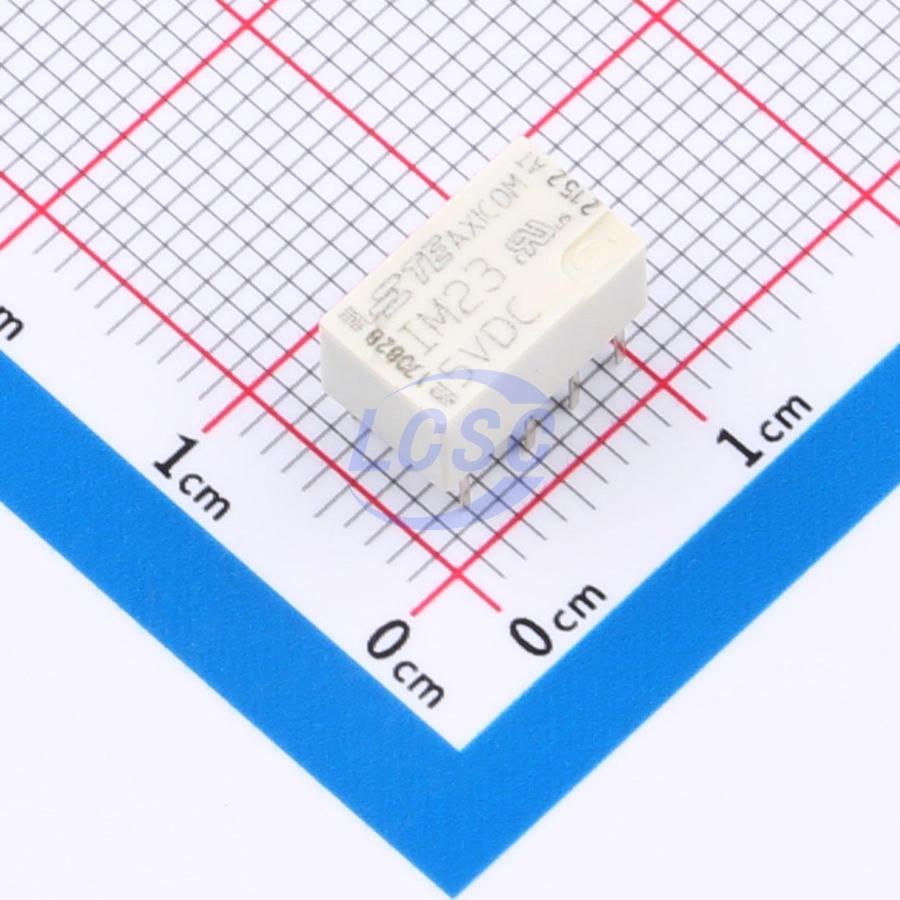

IM23KS
5V Two sets of changeover: 2C (DPDT) Through Hole Signal Relays, Up to 2 Amps RoHS
Through HoleROHS CompliantActive
- Manufacturer
- TE Connectivity
- Manufacturer part #
- IM23KS
- Store part #
- C34499023
- Package / case
- Through Hole
- Category
- Signal Relays, Up to 2 Amps
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C34499023
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹994.31 | ₹994.31 |
| 10+ | ₹971.13 | ₹9,711.30 |
| 30+ | ₹955.54 | ₹28,666.20 |
| 100+ | ₹939.93 | ₹93,993.00 |
1 × ₹994.31
₹994.31
excl. GST
₹1,173.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
IM23KS
₹994.31 for 1 + GST
Specifications
- Coil Resistance
- 500Ω
- Coil Voltage
- 5V
- Release Time
- 1ms;3ms
- Operate Time
- 1ms
- Operating Temperature
- -40℃~+85℃
- Width
- 6mm
- Contact Resistance
- 50mΩ
- Length
- 10mm
- Height
- 5.65mm
- Contact Rating
- 2A@30VDC;270mA@220VDC;250mA@250VAC;500mA@125VAC
- Switching Voltage(Max)
- 220V@DC;250V@AC
- Switching Current(Max)
- 2A;5A
- Contact Form
- Two sets of changeover: 2C (DPDT)
- Coil Rated Power
- 50mW
- Contact Material
- PdRu+Gold plating
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.14 g
Overview
Axicom IM signal relays, as part of our smallest types of electromechanical relays, offer a wide and deep range of variations suitable for many applications. The IM series are equipped with 2 changeover contacts in both monostable or bistable versions, available in multiple coil solutions, performance types and pin layouts.
Applications
- Telecommunication
- Access and transmission equipment
- Optical network terminals
- Modems
- Office and business equipment
- Consumer electronics
- Measurement and test equipment
- Industrial control
- Medical equipment HVAC
Key features
- Slim line 10x6 mm, low profile 5.65 mm and min. board - space 60mm².
- Switching current 2/5 A, switching power 60 W/62.5 VA and switching voltage 220 VDC/250 VAC.
- Low coil power consumption, 140 mW standard, 100 mW for high sensitive version, 50 mW for ultra high sensitive version and 100 mW for bistable version.
- High dielectric and surge capability up to 2500 Vrms between open contacts and 2500 Vrms between coil and contacts. High mechanical shock resistance up to 50 g functional.
