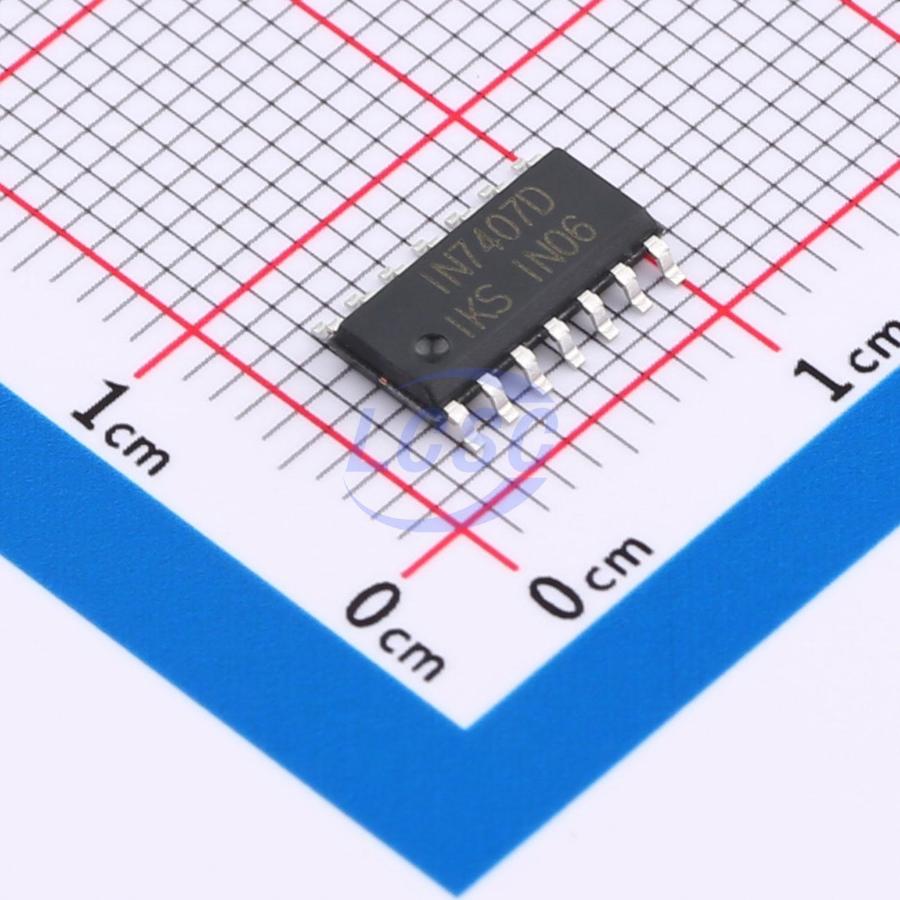

IN7407DT
4.75V~5.25V 6 1 SOIC-14 Buffers, Drivers, Receivers, Transceivers
SOIC-14RoHSActive
Hex Buffers/Drivers with Open-Collector High-Voltage Outputs
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IN7407DT
- Store part #
- C19725826
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C19725826
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.38 | ₹146.90 |
| 50+ | ₹25.86 | ₹1,293.00 |
| 150+ | ₹24.37 | ₹3,655.50 |
| 500+ | ₹22.48 | ₹11,240.00 |
| 2,500+ | ₹21.64 | ₹54,100.00 |
| 5,000+ | ₹21.14 | ₹1,05,700.00 |
5 × ₹29.38
₹146.90
excl. GST
₹173.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IN7407DT
₹146.90 for 5 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 250uA
- Voltage - Supply
- 4.75V~5.25V
- Current - Output Low(IOL)
- 40mA
- Output Type
- Open-drain
- Number of Bits per Element
- 6
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -10℃~+70℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
The IN7407 monolithic TTL hex buffers/drivers feature high-voltage open collector outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays), and are also characterized for use as buffers for driving TTL inputs.
Key features
- Minimum breakdown Voltages is 30 V
- Maximum sink Current is 40 mA
- Converts TTL Voltage Levels to MOS Levels
- Open-Collector Driver for Indicator Lamps and Relays
- Inputs Fully Compatible with most TTL Circuits
