lingxingicDatasheet (PDF)

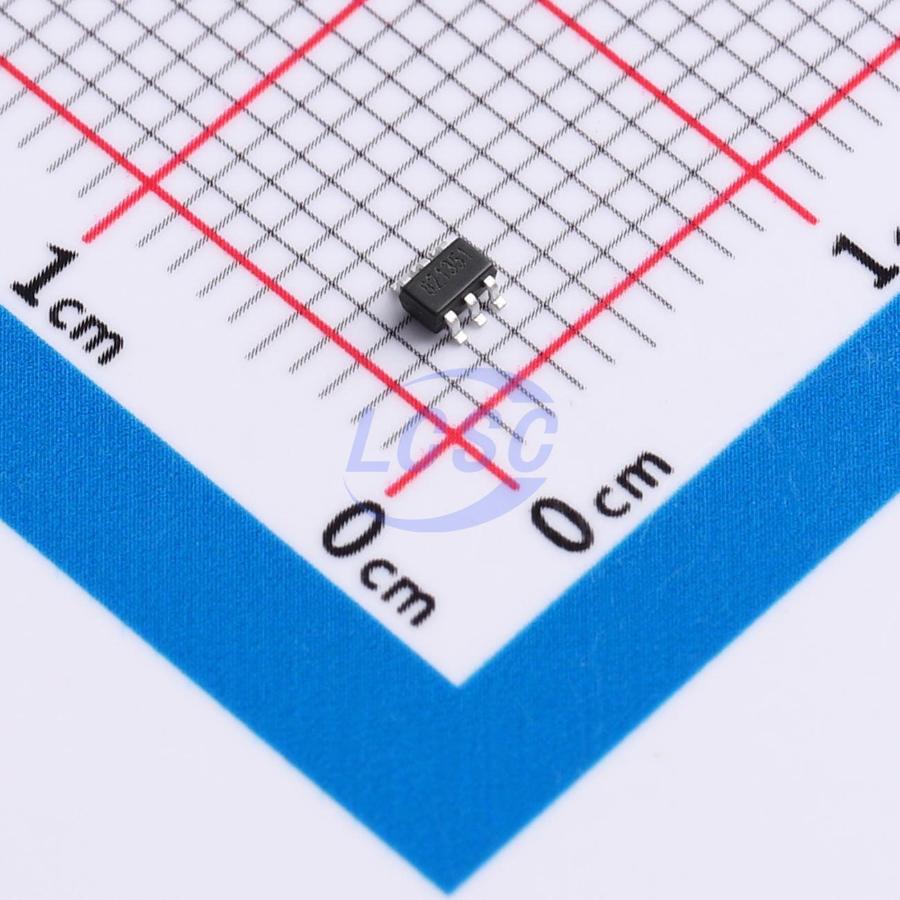

INA213AIDCKR(LX)
1 -200mV~3V 60uV 0.45V/us 110dB 35uA 110uA 50V/V SOT-363 Instrumentation, Op Amps, Buffer Amps
SOT-363RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- INA213AIDCKR(LX)
- Store part #
- C52097914
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C52097914
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.35 | ₹176.75 |
| 50+ | ₹31.01 | ₹1,550.50 |
| 150+ | ₹29.16 | ₹4,374.00 |
| 500+ | ₹26.83 | ₹13,415.00 |
| 3,000+ | ₹25.80 | ₹77,400.00 |
| 6,000+ | ₹25.18 | ₹1,51,080.00 |
5 × ₹35.35
₹176.75
excl. GST
₹208.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
INA213AIDCKR(LX)
₹176.75 for 5 + GST
Specifications
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- -200mV~3V
- Vos - Input Offset Voltage
- 60uV
- Slew Rate
- 0.45V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 35uA
- -3dB Bandwidth
- 50kHz
- Input Offset Voltage Drift(Vos TC)
- 0.1uV/℃
- Quiescent Current
- 110uA
- Gain
- 50V/V
- Features
- Zero drift / auto-zero;Bidirectional detection;Programmable output reference level
- Single Supply
- 2.7V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The INA21X is a zero-drift, bidirectional current-sense amplifier operating from a 2.7V to 30V single supply, capable of sensing the voltage drop across a shunt resistor over a common-mode voltage range of -0.2V to 30V. The device is primarily used for high-side and low-side current sensing, as well as battery charging and power management systems. The family offers six fixed-gain options: 50V/V, 75V/V, 100V/V, 200V/V, 500V/V, and 1000V/V. The circuit employs a zero-drift architecture with low offset voltage. Under typical conditions, the INA21X draws a quiescent supply current of 110µA.
Applications
- High-side and low-side current sensing
- Battery charging and power management systems
Key features
- Maximum input offset voltage: ±200µV
- Input common-mode voltage range: -0.2V ~ 30V
- Supply voltage range: 2.7V ~ 30V
- Maximum gain error over full temperature range: ±1%
- Maximum offset voltage drift: 0.5µV/℃
- Maximum gain drift: 10ppm/℃
- Device-specific gain: INA210 = 200V/V, INA211 = 500V/V, INA212 = 1000V/V, INA213 = 50V/V, INA214 = 100V/V, INA215 = 75V/V
- Typical supply current: 110µA
- Rail-to-rail output
- Operating temperature range: -40℃ ~ 125℃
- Package: SOT363
- ESD rating: 4kV HBM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | INA199A1DC(LX)#C54279238lingxingic · SOT-363 | lingxingic | SOT-363 | 5,265 | ₹23.85 · 5,265 in stock | View |
