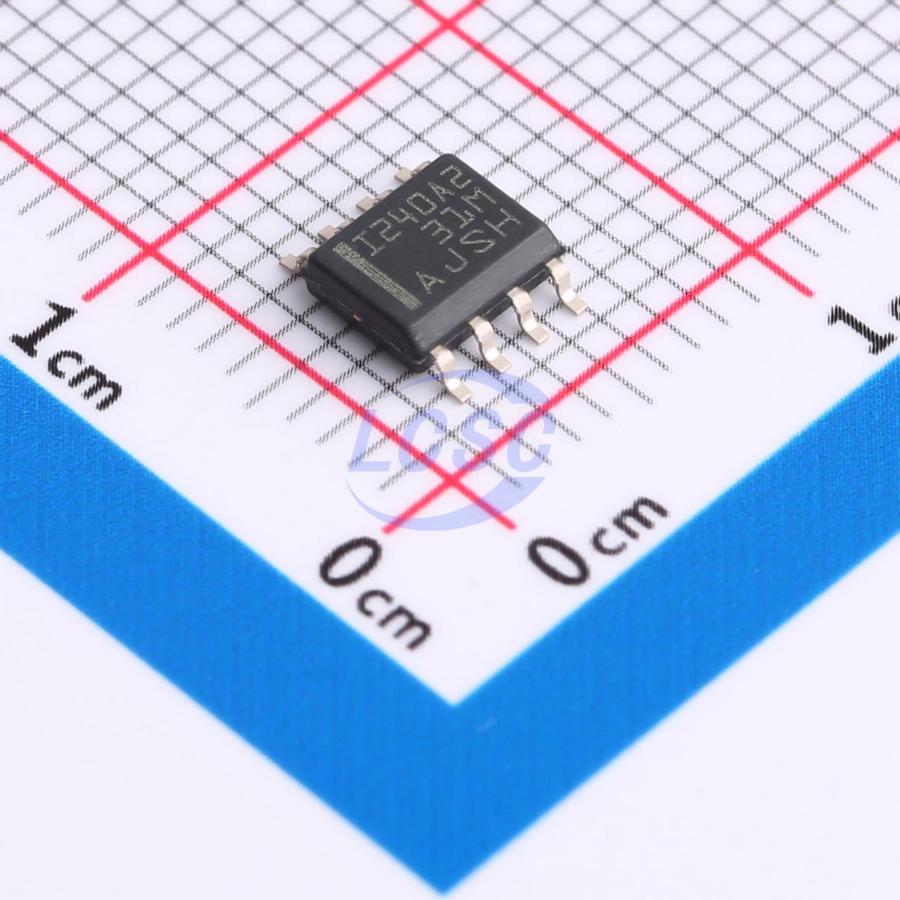

INA240A2DR

1 5uV -4V~80V 2V/us 132dB 90uA 1.8mA 50V/V SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Current Sense Amplifiers

Manufacturer: TI
Manufacturer part #: INA240A2DR
Store part #: C2060768
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,263 in stock

#C2060768

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹233.32	₹233.32
10+	₹194.18	₹1,941.80
30+	₹172.65	₹5,179.50
100+	₹148.31	₹14,831.00
500+	₹137.64	₹68,820.00
1,000+	₹132.64	₹1,32,640.00

Quantity (min 1)

1 × ₹233.32

₹233.32

excl. GST

₹275.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

INA240A2DR

₹233.32 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 5uV
Vcm - Common Mode Voltage: -4V~80V
Slew Rate: 2V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 132dB
Ib - Input Bias Current: 90uA
-3dB Bandwidth: 400kHz
Input Offset Voltage Drift(Vos TC): 250nV/℃
Quiescent Current: 1.8mA
Gain: 50V/V
Features: Bidirectional detection;Analog output interface;Programmable output reference level;Zero drift / auto-zero
Input Voltage Noise Density: 40nV/√Hz@1kHz
Differential Voltage: ±80V
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.292 g

Overview

Current sense amplifiers, also called current shunt monitors, are specialized differential amplifiers with a precisely matched resistive gain network. Designed to monitor the current flow by measuring the voltage drop across a sense element, typically a shunt resistor. Tend to be easier to use, more precise and less prone to noise. Support currents from 10s of μA to 100s of A. Natively support common - mode voltages from -16 to +80 V and with additional circuitry up to 100s of volts.

Key features

Designed to monitor the current flow by measuring the voltage drop across a sense element, typically a shunt resistor
Tend to be easier to use, more precise and less prone to noise
Support currents from 10s of μA to 100s of A
Natively support common - mode voltages from -16 to +80 V and with additional circuitry up to 100s of volts
Real - time overcurrent protection
Current and power monitoring for system optimization
Current measurement for closed - loop feedback
Integrates the amplifier along with all the gain - setting resistors which enables small and unified temperature drift
Integrates the full analog signal processing and provides a voltage or current output
Integrates the full signal conditioning path and utilizes a standard 2 - wire digital interface
Provides a simple ALERT signal when the load current exceeds a threshold
Offers a low - drift, precision integrated sense element
Able to detect load short to ground
Current is monitored directly from the source
High immunity to ground disturbance
Integrated gain resistors provide excellent matching to enable a higher performing and more stable platform
Reduction in board space requirements
High dynamic changes in the common - mode voltage are difficult to achieve with standard op amps
Unique input architecture allows for the common - mode voltage to greatly exceed the device supply voltage
Simple to implement and low - cost solution
Wide range of available options
True differential measurement across the shunt resistor
Lower VOFFSET saves system power by enabling the use of smaller value shunt resistors to achieve the same error level
