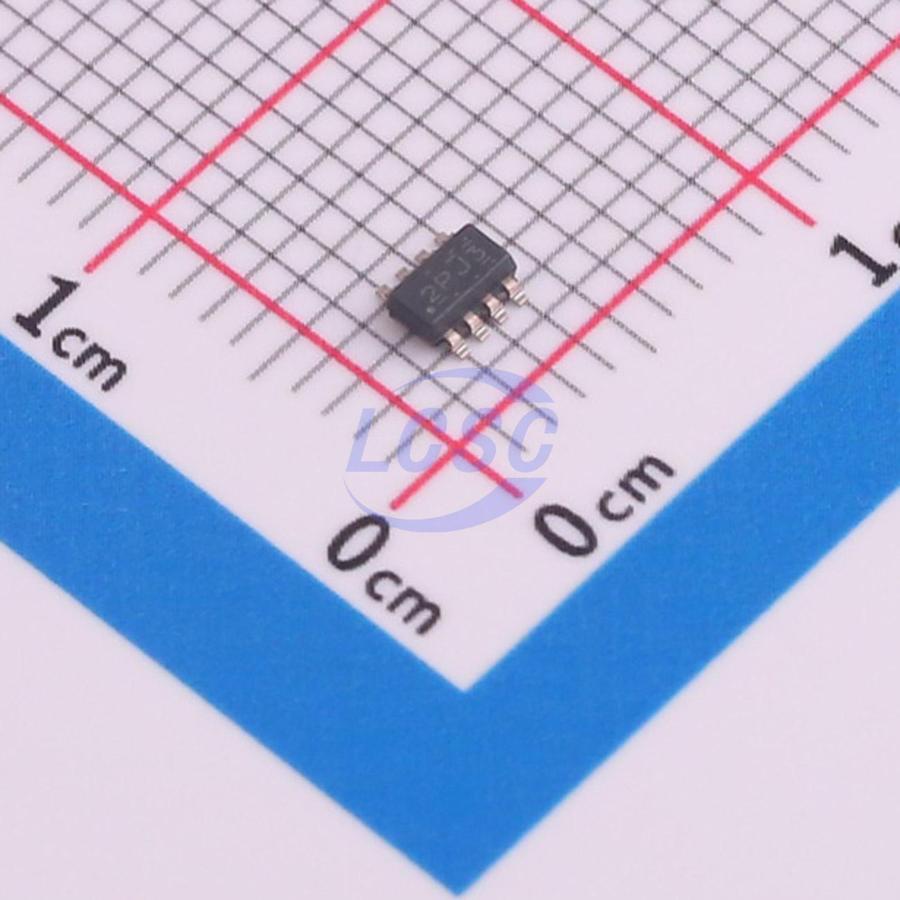

INA241A3IDDFR

The INA241x is an ultra-precise bidirectional current-sense amplifier that measures the voltage drop across a shunt resistor over a wide common-mode range of -5V to 110V, independent of the supply voltage. The combination of low offset voltage (±10µV maximum), tight gain error (±0.01% maximum), and high DC CMRR (166dB typical) enables high-accuracy current measurement. The INA241x is suited for high-voltage bidirectional measurement in switching systems where high common-mode transient voltages appear at the device inputs. Due to common-mode voltage transitions at the inputs, the enhanced PWM rejection circuitry inside the INA241x ensures minimal signal disturbance at the output. The INA241x operates from a single supply of 2.7V to 20V and draws 2.5mA of supply current. Five gain options are available: 10V/V, 20V/V, 50V/V, 100V/V, and 200V/V. The multiple gain options allow optimization between available shunt resistance values and wide output dynamic range requirements. The INA241x is rated for operation over a temperature range of -40℃ to 125℃.

Applications

• Motor drivers
• Solenoids and actuators
• Injection molding machines
• Cordless power tools
• Medical wireless tools
• Drone propeller speed control

Key features

• Enhanced PWM rejection optimized for systems affected by switching common-mode voltage, supporting switching frequencies up to 125kHz
• Wide common-mode voltage: operating voltage -5V to 110V, withstand voltage -20V to 120V
• Bidirectional operation
• High small-signal bandwidth: 1.1MHz (at all gains)
• Slew rate: 8V/µs
• Step response settling time to 1%: 1µs
• Excellent CMRR: 166dB DC CMRR; 104dB AC CMRR (at 100kHz); 89dB AC CMRR (at 1MHz)
• Two accuracy grades available: Version A — gain error (max) ±0.01%, ±1ppm/℃ drift, offset voltage (max) ±10µV, ±0.1µV/℃ drift; Version B — gain error (max) ±0.1%, ±5ppm/℃ drift, offset voltage (max) ±150µV, ±0.5µV/℃ drift
• Five gain options available: INA241A1, INA241B1: 10 V/V; INA241A2, INA241B2: 20 V/V; INA241A3, INA241B3: 50 V/V; INA241A4, INA241B4: 100 V/V; INA241A5, INA241B5: 200 V/V
• Available in SOT23-8, VSSOP-8, and SOIC-8 packages
