VBsemi ElecDatasheet (PDF)

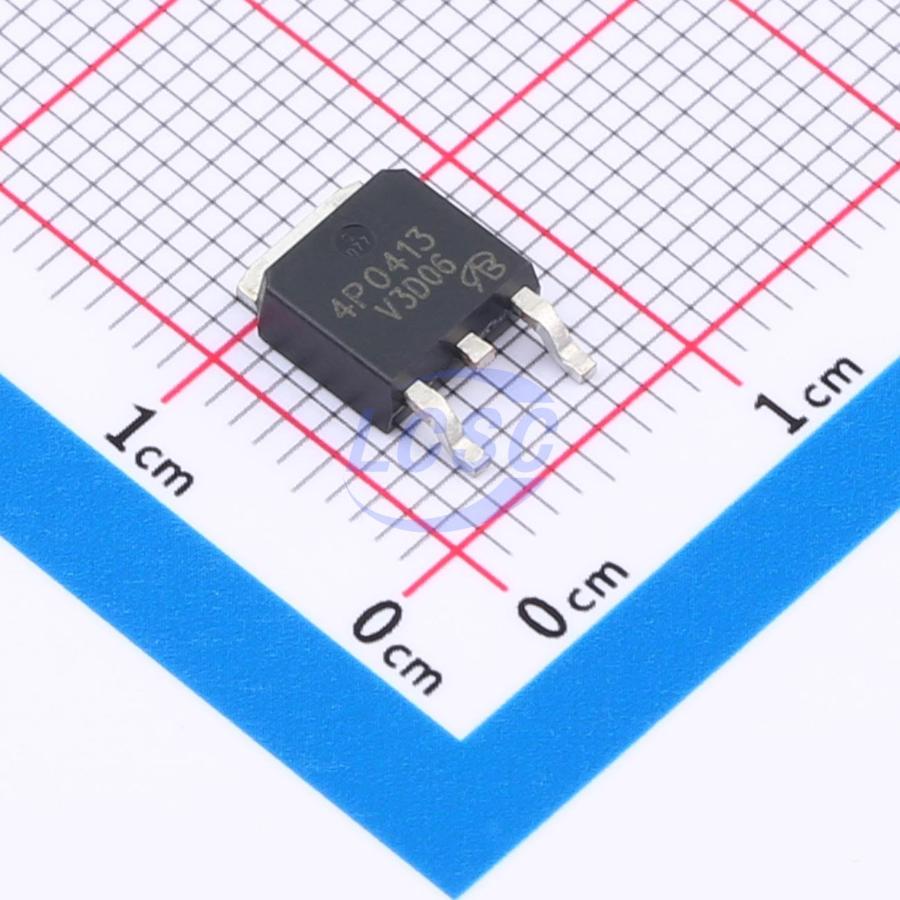

IPD50P04P4-13-VB
P-Channel 40V 50A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 40V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD50P04P4-13-VB
- Store part #
- C7428999
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7428999
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.70 | ₹101.70 |
| 10+ | ₹85.19 | ₹851.90 |
| 30+ | ₹76.93 | ₹2,307.90 |
| 100+ | ₹68.68 | ₹6,868.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹101.70
₹101.70
excl. GST
₹120.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD50P04P4-13-VB
₹101.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 508pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 352pF
- RDS(on)
- 12mΩ@10V;15mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP6677GH-VB#C19626753VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 21 | ₹85.92 · 21 in stock | View |
 | TJ10S04M3L-VB#C19632043VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 36 | ₹85.92 · 36 in stock | View |
 | TK50P04M1-VB#C19632177VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹85.92 · 40 in stock | View |
 | AOD413A-VB#C20755221VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹85.92 · 50 in stock | View |
 | AP9565BGH-VB#C20755342VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹85.92 · 50 in stock | View |
