VBsemi ElecDatasheet (PDF)

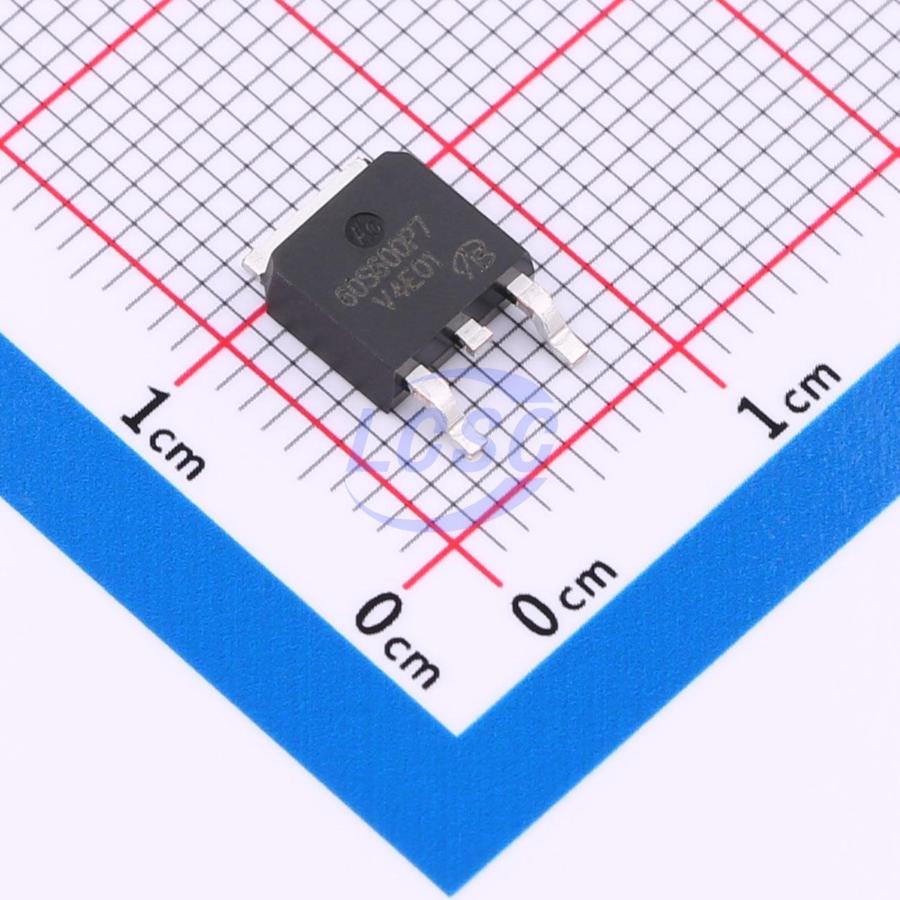

IPD60R600P7S-VB
N-Channel 600V 7A 83W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 600V 7A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD60R600P7S-VB
- Store part #
- C22395939
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22395939
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.00 | ₹123.00 |
| 10+ | ₹99.09 | ₹990.90 |
| 30+ | ₹86.92 | ₹2,607.60 |
| 100+ | ₹75.19 | ₹7,519.00 |
| 500+ | ₹68.02 | ₹34,010.00 |
| 1,000+ | ₹64.32 | ₹64,320.00 |
1 × ₹123.00
₹123.00
excl. GST
₹145.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD60R600P7S-VB
₹123.00 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on × Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 07N60S5 TO252-VB#C19632072VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹138.86 · 50 in stock | View |
 | 7N60 TO252-VB#C19632084VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 16 | ₹138.77 · 16 in stock | View |
 | SPD07N60S5T-VB#C20417553VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹140.34 · 10 in stock | View |
 | D9N50-VB#C20417700VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹137.17 · 50 in stock | View |
 | 60N745U2G-VB#C20755028VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹131.92 · 50 in stock | View |
