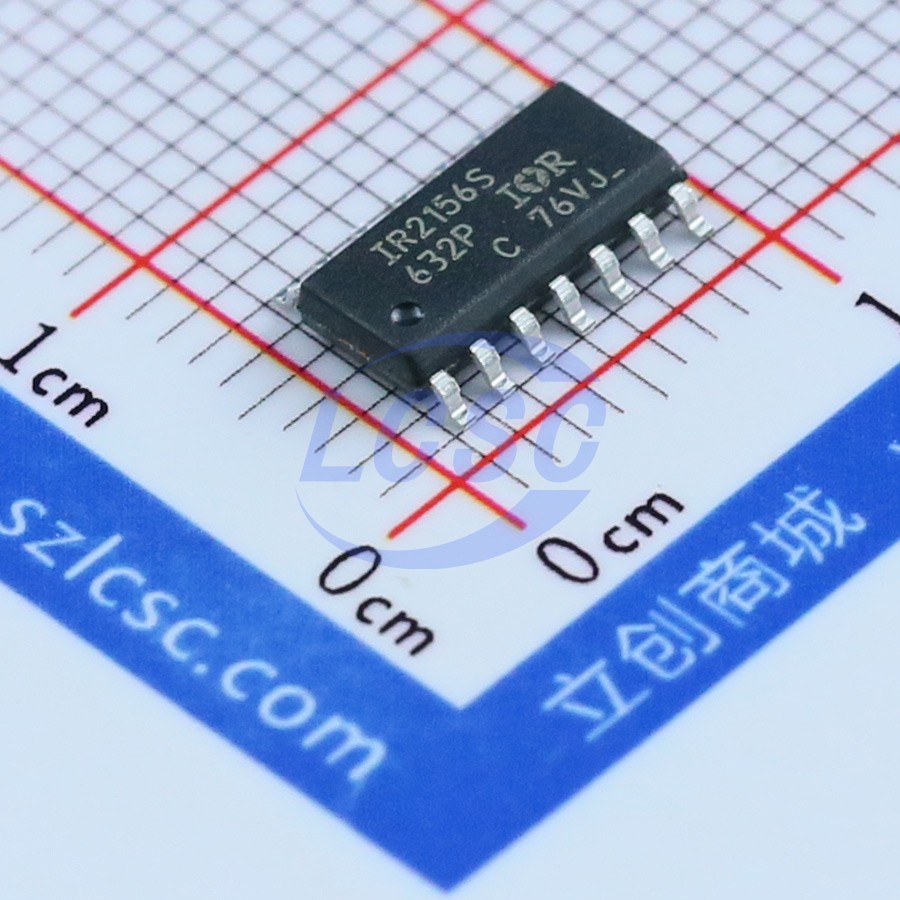

IR2156STRPBF
40kHz CFLController SOIC-14 Lighting, Ballast Controllers RoHS
Ballast control IC
- Manufacturer
- Infineon
- Manufacturer part #
- IR2156STRPBF
- Store part #
- C2989
- Package / case
- SOIC-14
- Category
- Lighting, Ballast Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,538 in stock
#C2989
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.14 | ₹148.14 |
| 10+ | ₹121.39 | ₹1,213.90 |
| 30+ | ₹106.59 | ₹3,197.70 |
| 100+ | ₹89.84 | ₹8,984.00 |
| 500+ | ₹82.45 | ₹41,225.00 |
| 1,000+ | ₹79.18 | ₹79,180.00 |
1 × ₹148.14
₹148.14
excl. GST
₹174.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR2156STRPBF
₹148.14 for 1 + GST
Specifications
- Frequency - Switching
- 40kHz
- Driver Type
- CFLController
- Operating temperature
- -25℃~+125℃
- Output Current
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
The IR2156 incorporates a high voltage halfbridge gate driver with a programmable oscillator and state diagram to form a complete ballast control IC. The IR2156 features include programmable preheat and run frequencies, programmable preheat time, programmable dead-time, and programmable overcurrent protection. Comprehensive protection features such as protection from failure of a lamp to strike, filament failures, as well as an automatic restart function, have been included in the design.
Key features
- Ballast control and half bridge driver in one IC
- Programmable preheat frequency
- Programmable preheat time
- Internal ignition ramp
- Programmable over-current threshold
- Programmable run frequency
- Programmable dead time
- DC bus under-voltage reset
- Shutdown pin with hysteresis
- Internal 15.6V zener clamp diode on Vcc
- Micropower startup (150μA)
- Latch immunity and ESD protection
