VBsemi ElecDatasheet (PDF)

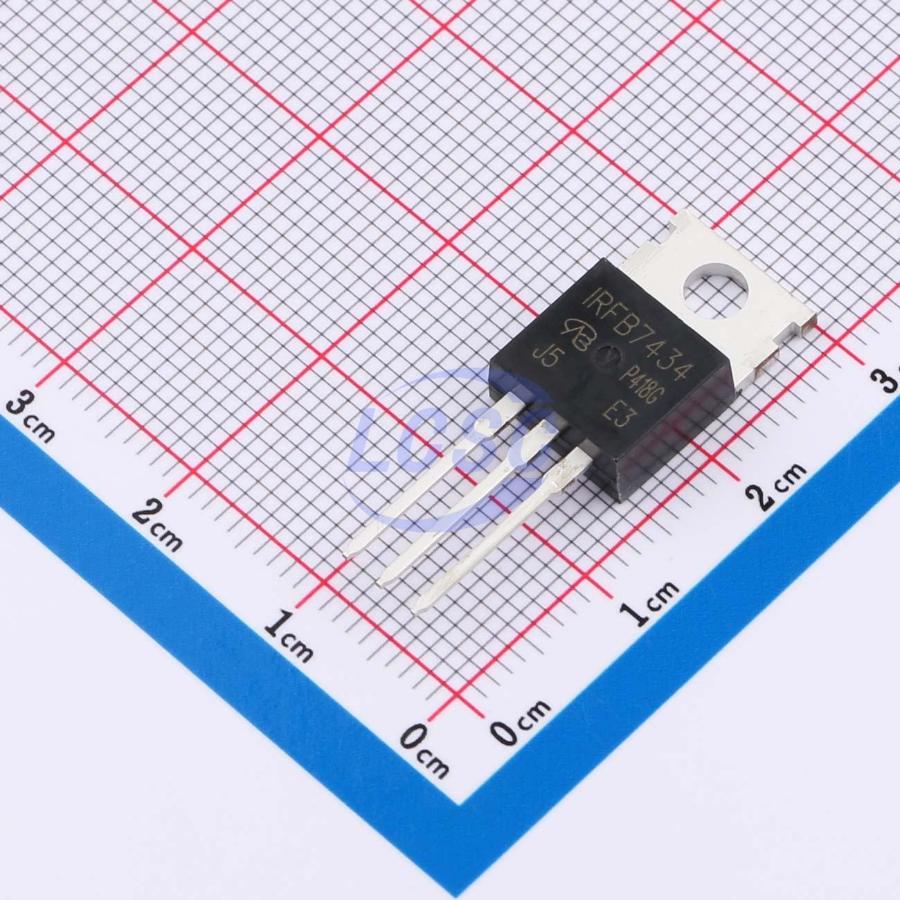

IRFB7434PBF-VB
N-Channel 40V 280A 312W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 40V 280A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFB7434PBF-VB
- Store part #
- C22389625
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389625
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹247.31 | ₹247.31 |
| 10+ | ₹212.70 | ₹2,127.00 |
| 50+ | ₹155.44 | ₹7,772.00 |
| 100+ | ₹133.89 | ₹13,389.00 |
| 500+ | ₹124.31 | ₹62,155.00 |
| 1,000+ | ₹120.17 | ₹1,20,170.00 |
1 × ₹247.31
₹247.31
excl. GST
₹291.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7434PBF-VB
₹247.31 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 280A
- Output Capacitance(Coss)
- 1.55nF
- Ciss-Input Capacitance
- 18.8nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 850pF
- RDS(on)
- 1.2mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 360nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.7 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF2804PBF-VB#C55251752VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹125.12 · 5 in stock | View |
 | IRFB7437PBF-VB#C7463453VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹235.34 · 20 in stock | View |
 | IPP120N08S4-03-VB#C54177261VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹369.43 · 5 in stock | View |
 | SUP60020E-GE3-VB#C54177282VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹369.43 · 5 in stock | View |
 | PSMN2R5-60PLQ-VB#C52148729VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹264.07 · 3 in stock | View |
