VBsemi ElecDatasheet (PDF)

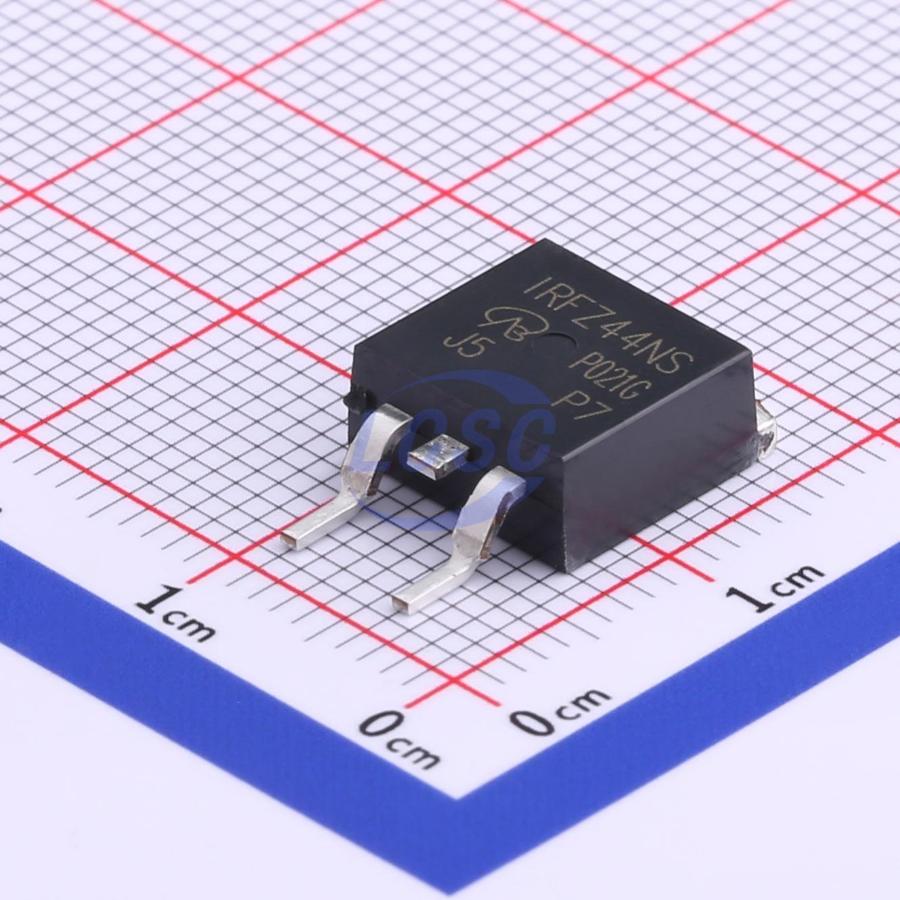

IRFZ44NS-VB
N-Channel 60V 60A 136W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 60A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFZ44NS-VB
- Store part #
- C879023
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C879023
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.07 | ₹139.07 |
| 10+ | ₹114.32 | ₹1,143.20 |
| 30+ | ₹102.04 | ₹3,061.20 |
| 100+ | ₹89.78 | ₹8,978.00 |
| 500+ | ₹82.46 | ₹41,230.00 |
| 800+ | ₹78.80 | ₹63,040.00 |
1 × ₹139.07
₹139.07
excl. GST
₹164.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFZ44NS-VB
₹139.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUM40N05-19L-VB#C22389691VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | IRFZ48RSP-VB#C2680725VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹138.93 · 1 in stock | View |
 | IRFZ44NSTRLPBF-VB#C45662534VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹147.61 · 5 in stock | View |
 | SUB45N05-20L-VB#C19190176VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | BUK7618-55A-VB#C19626810VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹128.56 · 10 in stock | View |
