VBsemi ElecDatasheet (PDF)

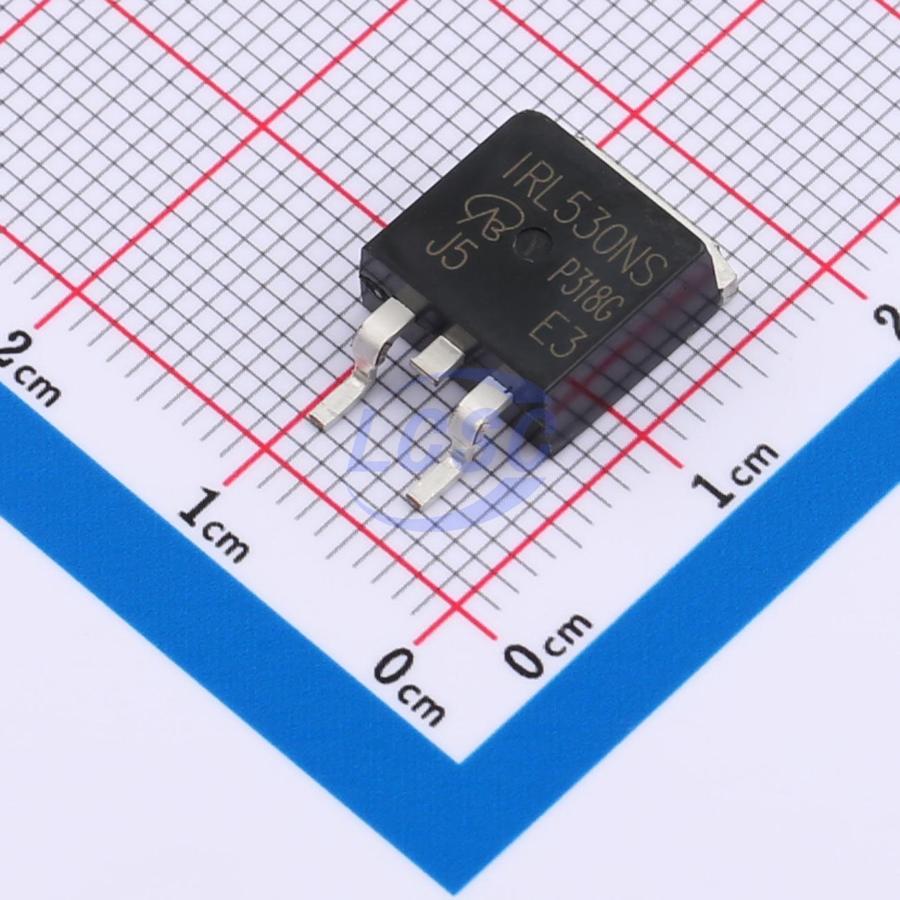

IRL530NSPBF-VB
N-Channel 100V 20A 105W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 20A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL530NSPBF-VB
- Store part #
- C7494467
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7494467
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.66 | ₹85.66 |
| 10+ | ₹69.54 | ₹695.40 |
| 50+ | ₹61.59 | ₹3,079.50 |
| 100+ | ₹53.62 | ₹5,362.00 |
| 500+ | ₹49.02 | ₹24,510.00 |
| 1,000+ | ₹46.50 | ₹46,500.00 |
1 × ₹85.66
₹85.66
excl. GST
₹101.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL530NSPBF-VB
₹85.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 280pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 105W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 100mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.216 g
Overview
Applications
- Isolated DC/DC converter
- N-channel MOSFET
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF530STRR-VB#C18794913VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 25 | ₹117.56 · 25 in stock | View |
 | PHB29N08T-VB#C19190192VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹86.92 · 5 in stock | View |
 | H7N1005LS-VB#C19626824VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹86.92 · 5 in stock | View |
 | F530NS-VB#C20417658VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | On request | ₹104.50 · 0 in stock | View |
 | PHB18NQ10T-VB#C22389657VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹82.56 · 1 in stock | View |
