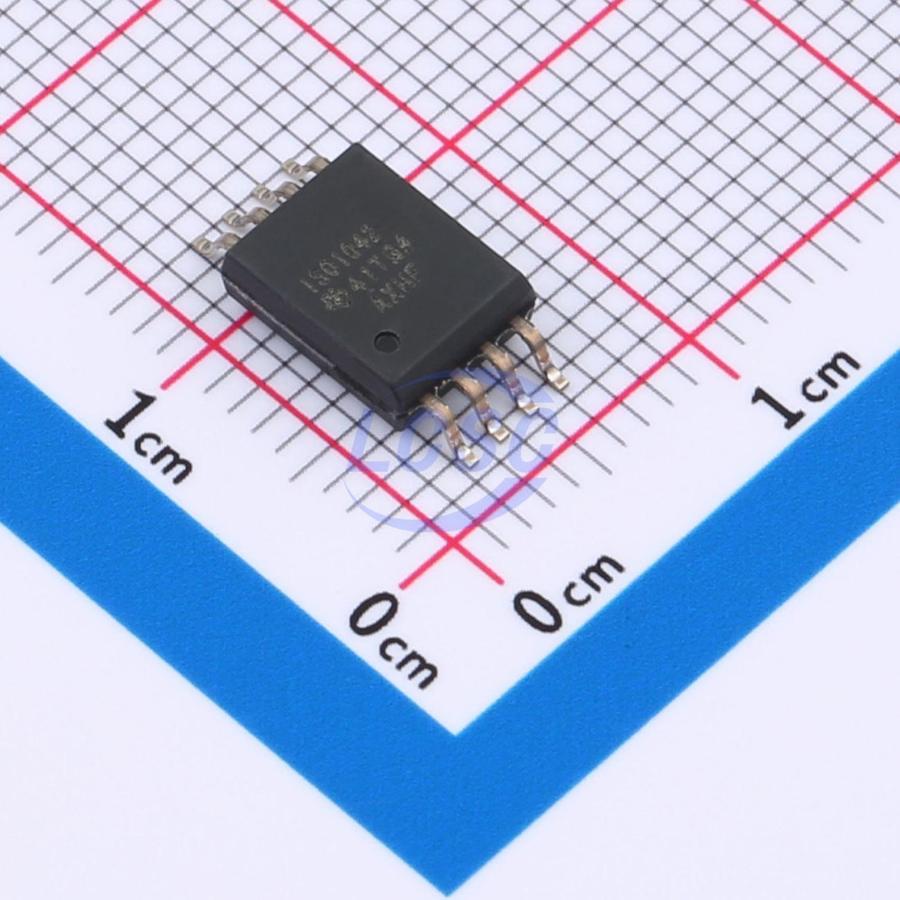

ISO1042DWVR

The ISO1042 device is an electrically isolated Controller Area Network (CAN) transceiver that complies with the ISO11898-2 (2016) standard specifications. The ISO1042 device provides ±70V DC bus fault protection and a ±30V common-mode voltage range. This device supports a maximum data rate of 5Mbps in CAN FD mode, enabling faster payload transmission compared to classic CAN. The device uses a silicon dioxide (SiO₂) insulation barrier, which can withstand a voltage of 5000V RMS and an operating voltage of 1060V RMS. The electromagnetic compatibility is significantly enhanced, enabling system-level ESD, EFT, and surge protection and complying with radiation standards. When used with an isolated power supply, this device can withstand high-voltage shocks and prevent bus noise currents from entering the local ground. The ISO1042 device can be used for basic and reinforced isolation. The ISO1042 device supports a wide ambient temperature range from -40°C to +125°C. This device is available in SOIC-16 (DW) and the more compact SOIC-8 (DWV) packages.

Applications

• AC and servo drives
• Photovoltaic inverters
• PLC and DCS communication modules
• Lifts and escalators
• Industrial power supplies
• Battery charging and management

Key features

• Compliant with ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
• Supports classic CAN up to 1Mbps and FD (Flexible Data Rate) up to 5Mbps
• Low loop delay: 152ns
• Protection: DC bus fault protection voltage: ±70V
• HBM ESD tolerance on bus pins: ±16kV
• Driver dominant timeout (TXD DTO)
• VCC1 and VCC2 undervoltage protection
• Common-mode voltage range: ±30V
• Ideal passive, high-impedance bus termination when unpowered
• High CMTI: 100kV/μs
• VCC1 voltage range: 1.71V to 5.5V
• Supports 1.8V, 2.5V, 3.3V, and 5.0V logic interfaces for connection to CAN controllers
• VCC2 voltage range: 4.5V to 5.5V
• Excellent EMC: system-level ESD, EFT, and surge immunity with low emissions
• Ambient temperature range: -40°C to +125°C
• 16-SOIC and 8-SOIC package options
• Automotive version available: ISO1042-Q1
• Safety-related certifications: 7071V PK V10TM and 1500V PK V10RM per DIN VDE V 0884-11:2017-01 (reinforced and basic options); 5000V RMS isolation for up to 1 minute per UL 1577; IEC 60950-1, IEC 60601-1, and EN 61010-1 certifications; CQC, TUV, and CSA certifications
