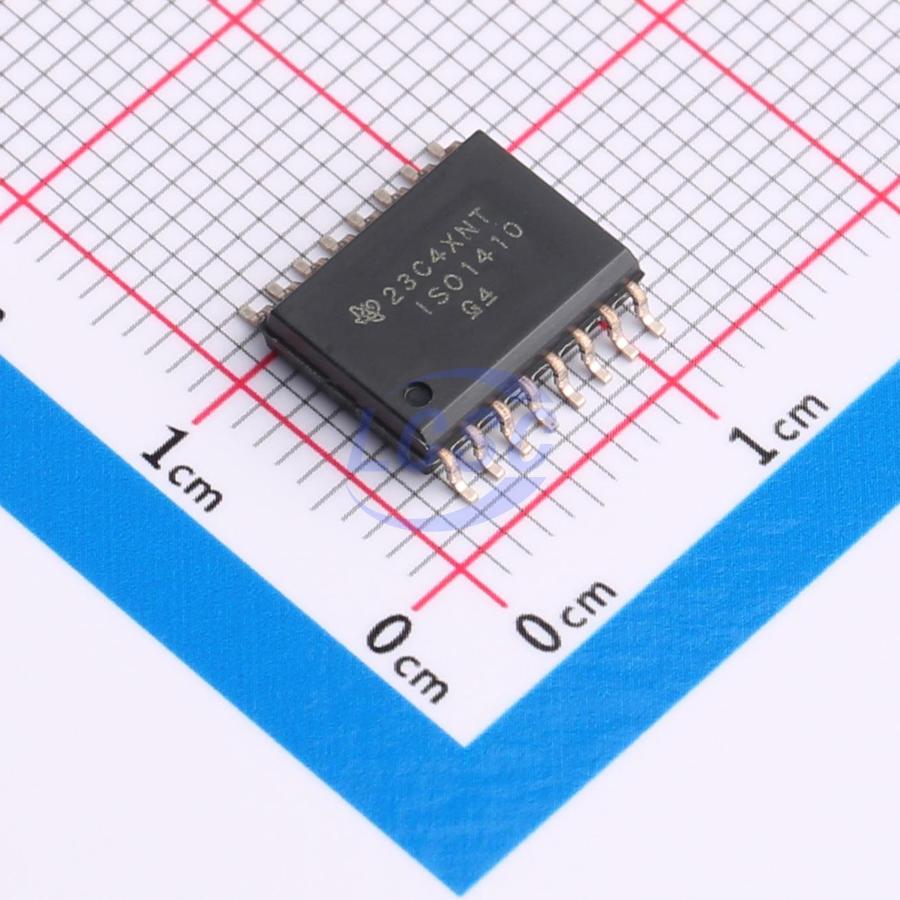

ISO1410DWR

ISO14xx devices are electrically isolated differential line transceivers suitable for TIA/EIA RS-485 and RS-422 applications. These noise-resistant transceivers are designed for harsh industrial environments. The bus pins of these devices can withstand high-level IEC electrostatic discharge (ESD) and IEC electrical fast transient (EFT) events without the need for additional components on the bus for system-level protection. These devices are available with basic and enhanced isolation options. These devices are used for long-distance communication. Isolation breaks the ground loop between communication nodes, resulting in a larger common-mode voltage range. Each device's symmetrical isolation barrier has been tested to provide 5000V RMS isolation for 1 minute between the bus transceiver and the logic-level interface in accordance with the UL 1577 standard. ISO14xx devices can operate with a supply voltage of 1.71V to 5.5V on side 1. This voltage range enables the devices to connect to low-voltage FPGAs and ASICs. There is a wide supply voltage range of 3V to 5.5V on side 2, so there is no need to provide a regulated power supply on the isolated side. These devices support a wide operating ambient temperature range of -40°C to +125°C.

Applications

• Grid infrastructure
• Photovoltaic inverters
• Factory automation and control
• Motor drives
• HVAC systems and building automation

Key features

• Compliant with TIA/EIA-485-A standard, PROFIBUS compatible with 5V bus-side supply
• Bus I/O protection
• ±30kV HBM, ±16kV IEC 61000-4-2 contact discharge, ±4kV IEC 61000-4-4 EFT
• Low EMI, 500kbps, 12Mbps, and 50Mbps data rates
• Fail-safe receiver (open, shorted, and idle bus)
• 1/8 unit load: up to 256 bus nodes
• 100kV/μs (typical) high common-mode transient immunity
• Wide-body SOIC-16 package
• Safety-related certifications:
• 7071VPK VIOTM and 1500VPK V10RM per DIN VDE V 0884-11:2017-01 (reinforced and basic options)
• 5000VRMS isolation for up to 1 minute per UL 1577
• IEC 60950-1, IEC 62368-1, IEC 60601-1, and IEC 61010-1 certified
• CQC, TUV, and CSA certified
• VDE (reinforced), UL, CQC, and TUV certifications complete; VDE (basic) and CSA approvals pending
