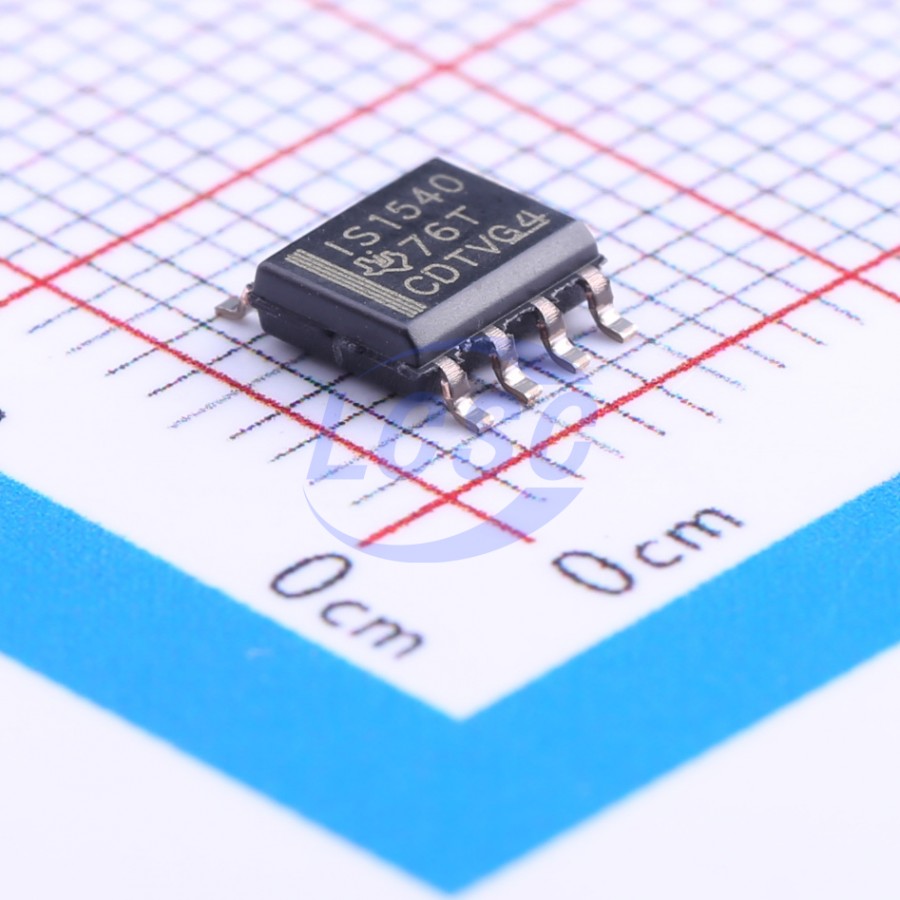

ISO1540DR

The ISO1540 and ISO1541 devices are low-power, bidirectional isolators that are compatible with I²C interfaces. These devices have logic input and output buffers that are separated by Capacitive Isolation technology using a silicon dioxide (SiO₂) barrier. When used with isolated power supplies, these devices block high voltages, isolate grounds, and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry. This isolation technology provides for function, performance, size, and power consumption advantages when compared to optocouplers. The ISO1540 and ISO1541 devices enable a complete isolated I²C interface to be implemented within a small form factor. The ISO1540 has two isolated bidirectional channels for clock and data lines while the ISO1541 has a bidirectional data and a unidirectional clock channel. The ISO1541 is useful in applications that have a single master while the ISO1540 is suitable for multimaster applications. For applications where clock stretching by the slave is possible, the ISO1540 device should be used. Isolated bidirectional communication is accomplished within these devices by offsetting the low-level output voltage on side 1 to a value greater than the highlevel input voltage on side 1, thus preventing an internal logic latch that otherwise would occur with standard digital isolators.

Applications

• Isolated I²C Buses
• SMBus and PMBus Interfaces
• Open-Drain Networks
• Motor Control Systems
• Battery Management I²C Level Shifting

Key features

• Isolated Bidirectional, I²C Compatible, Communication Supports up to 1-MHz Operation
• 3-V to 5.5-V Supply Range
• Open-Drain Outputs With 3.5-mA Side 1 and 35-mA Side 2 Sink Current Capability
• -40°C to +125°C Operating Temperature
• ±50-kV/μs Transient Immunity (Typical)
• HBM ESD Protection of 4-kV on All Pins; 8-kV on Bus Pins
• Safety-Related Certifications:
• 4242-VPK Isolation per DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
• 2500-VFMS Isolation for 1 Minute per UL 1577
• CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards
• CQC Basic Insulation per GB4943.1-2011
