MICROCHIPDatasheet (PDF)

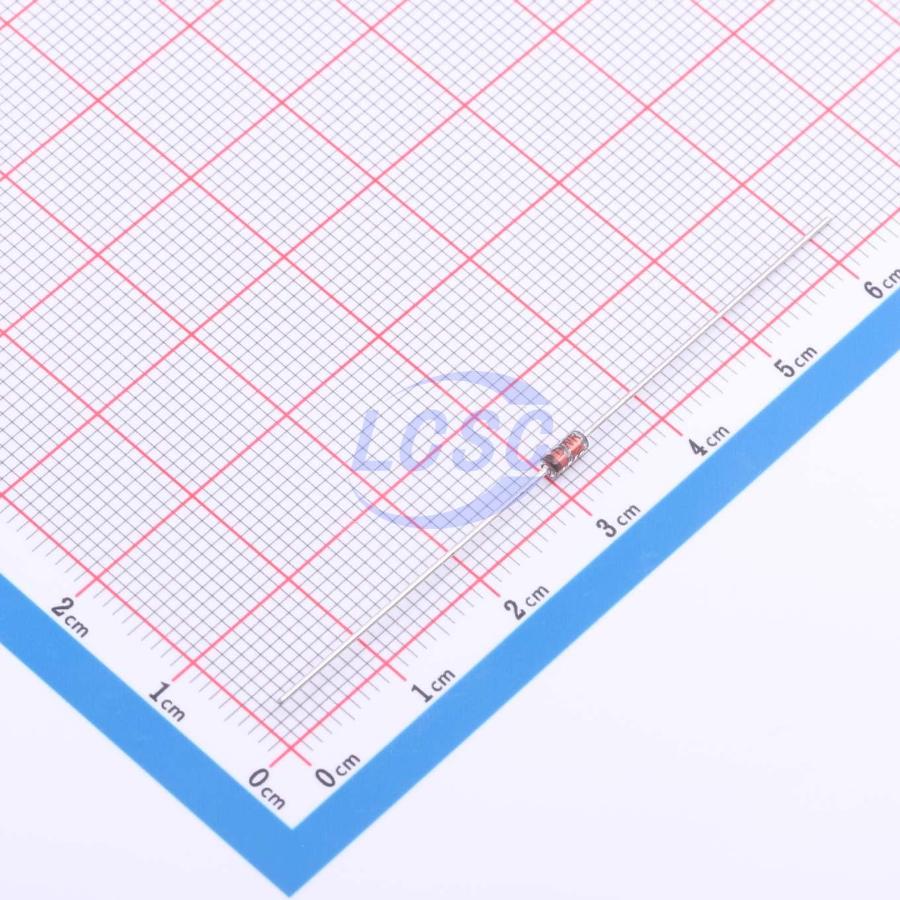

JAN1N914
20ns 75V 1.2V@50mA 200mA DO-35 Single Diodes
DO-35RoHSActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- JAN1N914
- Store part #
- C6797897
- Package / case
- DO-35
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C6797897
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹222.67 | ₹222.67 |
| 10+ | ₹218.77 | ₹2,187.70 |
| 30+ | ₹216.39 | ₹6,491.70 |
| 100+ | ₹213.78 | ₹21,378.00 |
1 × ₹222.67
₹222.67
excl. GST
₹262.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per box
JAN1N914
₹222.67 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 20ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Voltage - Forward(Vf@If)
- 1.2V@50mA
- Reverse Leakage Current (Ir)
- 500nA@75V
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.292 g
Overview
This small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-35 package. It may be used in a variety of very high speed applications including switchers, detectors, transient OR'ing, logic arrays, blocking, as well as low-capacitance steering diodes, etc.
Applications
- High frequency data lines
- RS-232 & RS–422 interface networks
- Ethernet 10 base T
- Low-capacitance steering diodes
- LAN
- Computers
