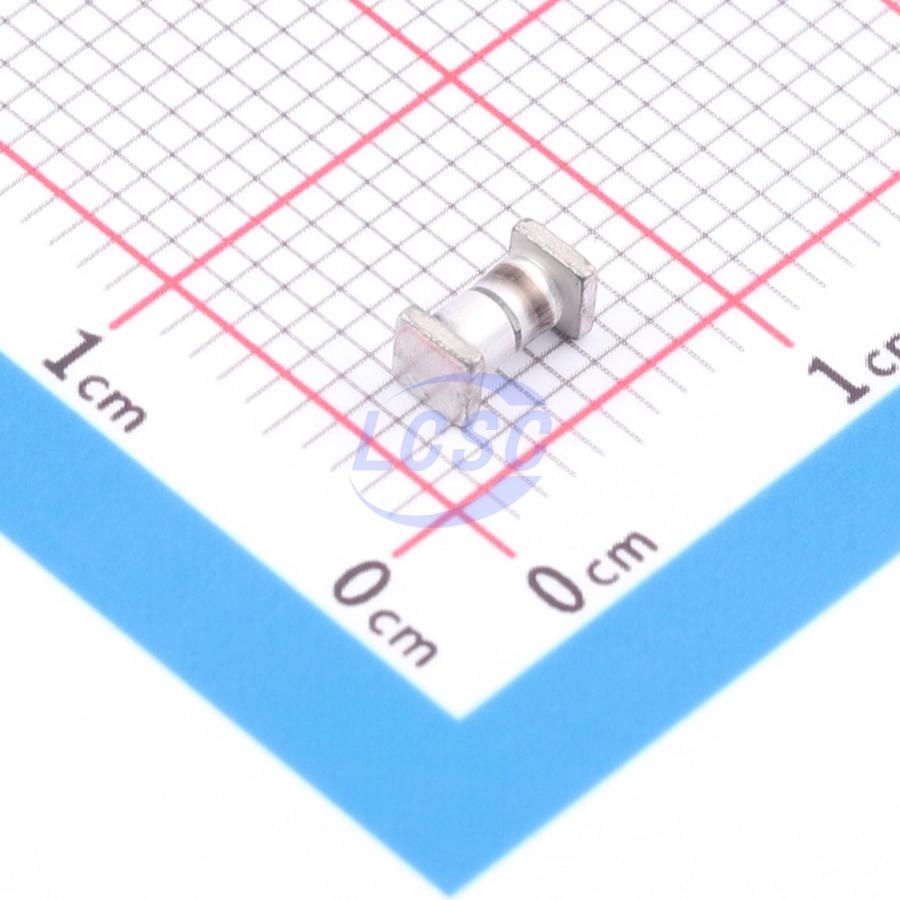

JANTXV1N5806US
25ns 1 Independent 150V 975mV@2.5A 2.5A DO-35 Single Diodes
DO-35Active
- Manufacturer
- MICROCHIP
- Manufacturer part #
- JANTXV1N5806US
- Store part #
- C6797988
- Package / case
- DO-35
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C6797988
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,230.54 | ₹3,230.54 |
| 10+ | ₹3,155.09 | ₹31,550.90 |
1 × ₹3,230.54
₹3,230.54
excl. GST
₹3,812.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per box
JANTXV1N5806US
₹3,230.54 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Voltage - Forward(Vf@If)
- 975mV@2.5A
- Reverse Leakage Current (Ir)
- 1uA@150V
- Non-Repetitive Peak Forward Surge Current
- 35A
- Current - Rectified
- 2.5A
Packaging & compliance
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.84 g
Overview
This “Ultrafast Recovery” rectifier diode series is high qualified and is ideal for high-reliability applications where a failure cannot be tolerated. The 2.5 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with voidless glass construction using an internal “Category 1” metallurgical bond. These devices are available in both surface mount MELF and leaded package configurations.
Applications
- High-reliability applications.
- Switching power supplies or other applications requiring extremely fast switching & low forward loss.
Key features
- JEDEC registered surface mount equivalent of 1N5802, 1N5804, 1N5806 series.
- Voidless hermetically sealed glass package.
- Quadruple-layer passivation
- Extremely robust construction.
- Internal “Category 1” metallurgical bonds.
- JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/477.
- RoHS compliant versions available (commercial grade only).
