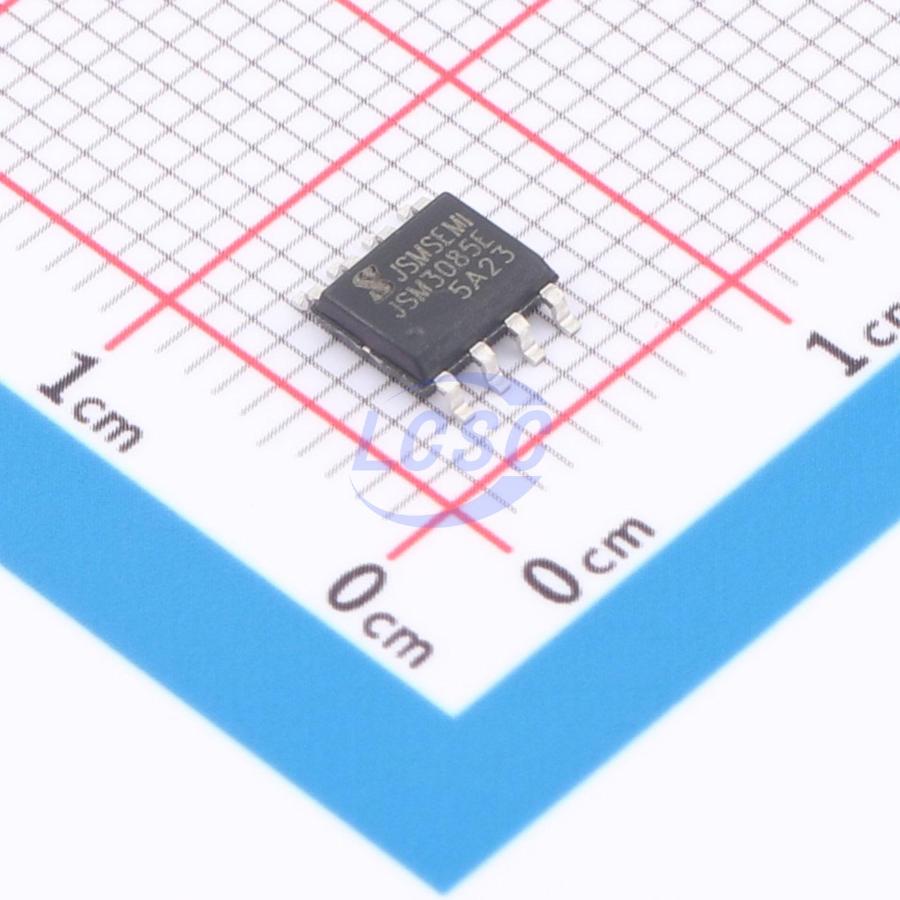

JSM3085E

JSM3085E is a half-duplex high-speed transceiver for RS-485/RS-422 communications, integrating one driver and one receiver. The device provides ±15kV human body model ESD protection and incorporates a built-in failsafe circuit that maintains a logic-high output when the receiver input is open or shorted. When all drivers on a terminated, matched bus are disabled (high-impedance state), the receiver output is also held logic-high. The driver features a slew-rate-limited design to reduce EMI and minimize signal reflections caused by improper cable termination, supporting error-free data transmission at up to 2Mbps. Additionally, the receiver offers 1/8 unit load input impedance, allowing up to 256 transceivers on a single bus. The device operates over a temperature range of -40℃ to 85℃.

Applications

• Industrial control
• Electricity/water/gas meters
• Data transceiver applications sensitive to EMI
• Security systems
• Lighting systems

Key features

• Low-current shutdown mode
• Industry-standard SOP-8 package
• Up to 256 transceivers on a single bus
• True fail-safe receiver compliant with EIA/TIA-485
• Robust slew rate control for error-free data transmission
• Enhanced ESD protection on RS-485/RS-422A/B pins: Human Body Model ±15kV; IEC 61000-4-2 compliant, contact discharge ±12kV, air discharge ±15kV
