JTDDatasheet (PDF)

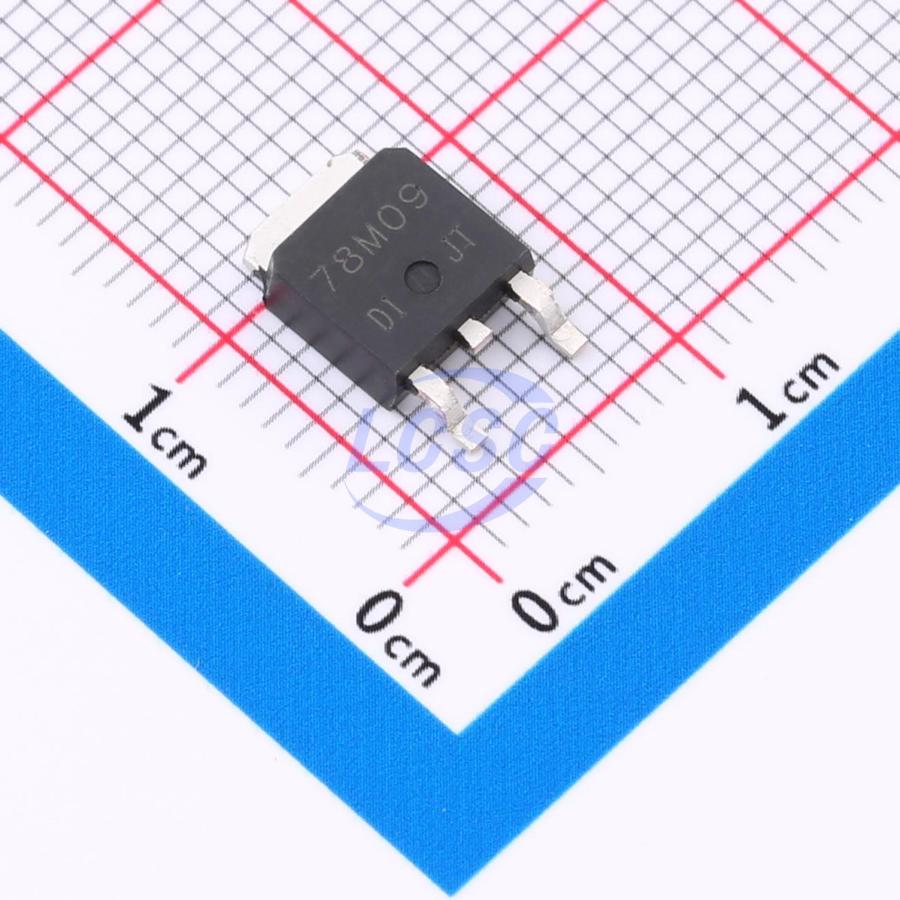

JTD78M09
9V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
IC REG LINEAR 9V 1A TO-252
- Manufacturer
- JTD
- Manufacturer part #
- JTD78M09
- Store part #
- C49308273
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,105 in stock
#C49308273
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.42 | ₹62.10 |
| 50+ | ₹9.82 | ₹491.00 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 2,500+ | ₹6.76 | ₹16,900.00 |
| 5,000+ | ₹6.38 | ₹31,900.00 |
5 × ₹12.42
₹62.10
excl. GST
₹73.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JTD78M09
₹62.10 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.3mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.464 g
Overview
78MXX is a fixed-output linear three-terminal voltage regulator with a wide input voltage range. It integrates an internal reference voltage circuit along with overvoltage, overcurrent, and overtemperature protection circuits, ensuring reliable operation. The output stage features low output impedance and is capable of delivering up to 1A of output current. The device has low quiescent current and is available in a TO-252-3 package.
Applications
- Instrumentation
- Motherboard Power Supply
- Multi-Channel Power Systems
- Equipment Power Modules
Key features
- Manufactured on 50V process platform
- Fixed output voltage options: 5V, 9V, 12V, 15V
- Wide input voltage range: 7V to 40V; 50V withstand voltage
- Low quiescent current: 2.3mA typical (at 10V input)
- Output voltage accuracy ±5% over full voltage, current, and temperature range
- Stable output current up to 1A
- Built-in over-temperature, over-voltage, and over-current protection
