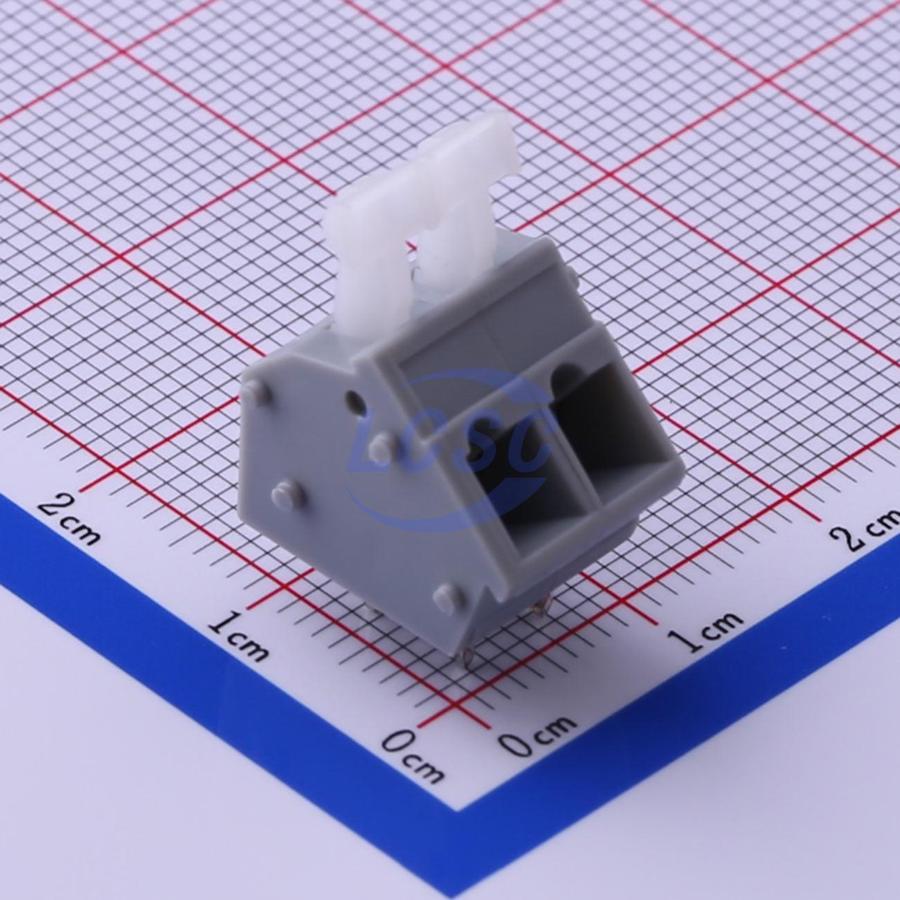

KF243-5.0-2P
2 Position Wire to Board Terminal Block 5mm Through Hole
PopularThrough Hole,P=5mmRoHSActive
TERM BLK 2POS 5mm TH
- Manufacturer
- Cixi Kefa Elec
- Manufacturer part #
- KF243-5.0-2P
- Store part #
- C475222
- Package / case
- Through Hole,P=5mm
- Category
- Wire to Board
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,940 in stock
#C475222
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.24 | ₹176.20 |
| 50+ | ₹27.25 | ₹1,362.50 |
| 300+ | ₹25.08 | ₹7,524.00 |
| 600+ | ₹20.81 | ₹12,486.00 |
| 2,400+ | ₹18.91 | ₹45,384.00 |
| 5,100+ | ₹17.75 | ₹90,525.00 |
5 × ₹35.24
₹176.20
excl. GST
₹207.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 300 per box
KF243-5.0-2P
₹176.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Current Rating
- 17A
- Wire Gauge - mm2
- 2.5
- Number of Positions or Pins
- 1x2P
- Voltage Rating (Max)
- 450V
- Color
- Gray
- Number of Pins
- 2P
- Wire Gauge - AWG
- 12~28
- Mounting Type
- Right-Angle(45°)
- Number of PINs Per Row
- 2
- Number of Rows
- 1
- Pitch
- 5mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Box-packed
- Standard pack
- 300 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.13 g
