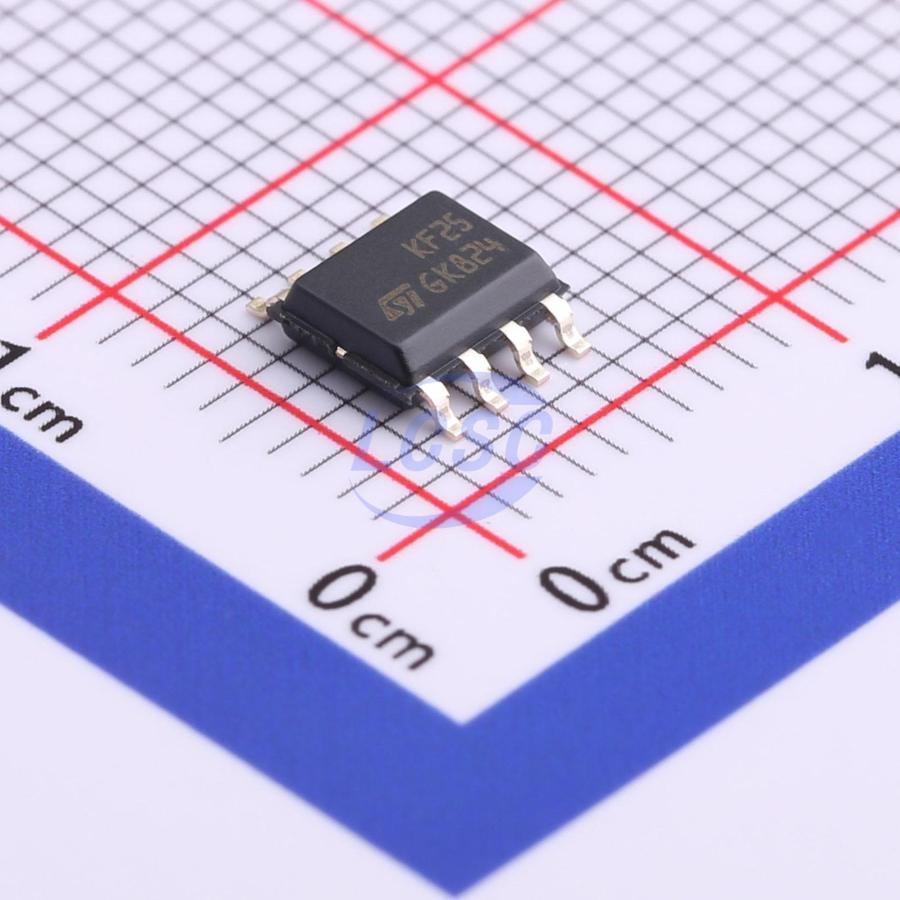

KF25BD-TR
2.5V Positive Fixed SO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-8ROHS3 CompliantActive
Very Low Drop Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- KF25BD-TR
- Store part #
- C500655
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C500655
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹222.65 | ₹222.65 |
| 10+ | ₹185.58 | ₹1,855.80 |
| 30+ | ₹165.31 | ₹4,959.30 |
| 100+ | ₹142.41 | ₹14,241.00 |
| 500+ | ₹132.38 | ₹66,190.00 |
| 1,000+ | ₹127.79 | ₹1,27,790.00 |
1 × ₹222.65
₹222.65
excl. GST
₹262.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
KF25BD-TR
₹222.65 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 20V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.107 g
Overview
The KF series are very low dropout voltage regulators available in SOT-89 and DIP packages and in a wide range of output voltages. The very low dropout voltage (0.4 V) and the very low quiescent current make them particularly suitable for low-noise, low power applications and especially in battery powered systems. A shutdown logic control function is available (pin 5, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing total power consumption.
Applications
- Low-noise, low-power applications
- Battery-powered systems
- Local regulators (can put portions of the board into standby to reduce power consumption)
Key features
- Very low quiescent current: 50 μA
- Output current up to 500 mA
- Logic controlled electronic switch
- 2.2 μF output capacitor recommended for stability
- ±2% output voltage accuracy at 25°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1963ES8-2.5#TRPBF#C665749ADI · SO-8 | ADI | SO-8 | 1 | ₹767.75 · 1 in stock | View |
 | CM6142-SOPTA#C54451281CIMO · SOP-8 | CIMO | SOP-8 | 80 | ₹442.05 · 80 in stock | View |
 | MC33269M-2.5/TR#C49384170HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,495 | ₹18.92 · 2,495 in stock | View |
 | LT1963AES8-2.5#PBF#C665692ADI · SO-8 | ADI | SO-8 | On request | ₹498.29 · 0 in stock | View |
 | LT1963AES8-2.5#TRPBF#C665693ADI · SO-8 | ADI | SO-8 | On request | ₹835.17 · 0 in stock | View |
