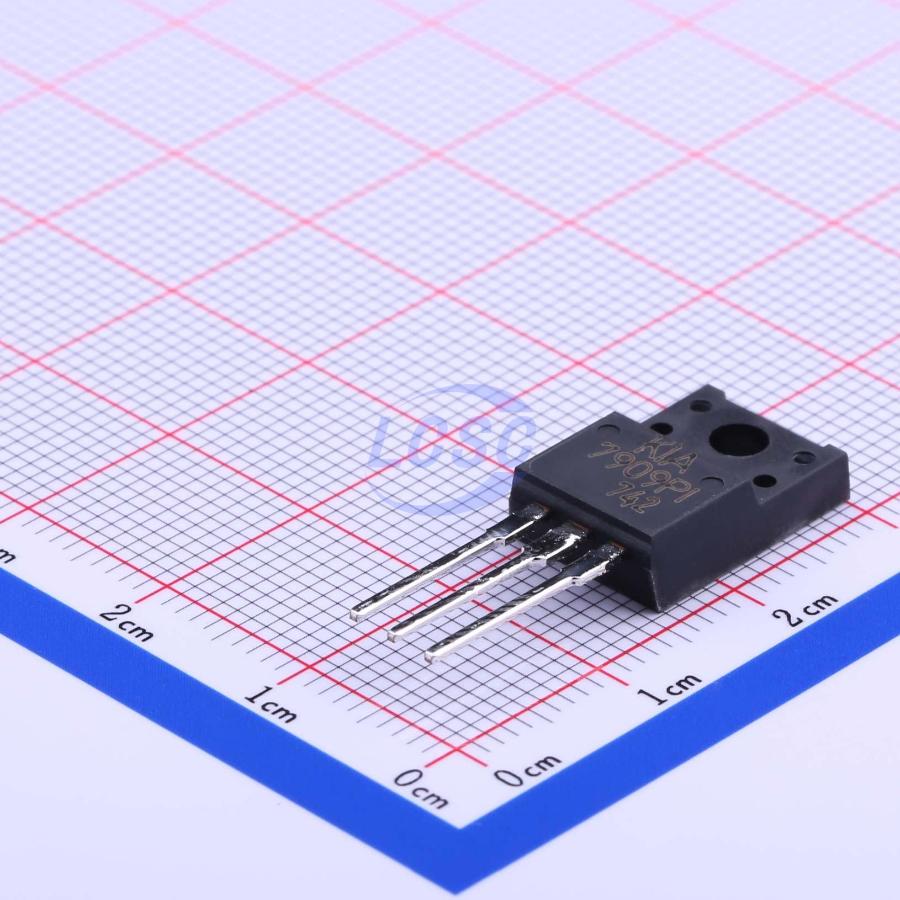

KIA7909PI-U/PF
Linear Voltage Regulator IC Negative Fixed 1 Output 1A TO-220IS
TO-220ISROHS CompliantActive
Three-terminal negative voltage regulator
- Manufacturer
- KEC
- Manufacturer part #
- KIA7909PI-U/PF
- Store part #
- C220503
- Package / case
- TO-220IS
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,835 in stock
#C220503
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.26 | ₹146.30 |
| 50+ | ₹21.06 | ₹1,053.00 |
| 150+ | ₹18.48 | ₹2,772.00 |
| 500+ | ₹15.25 | ₹7,625.00 |
| 2,000+ | ₹13.81 | ₹27,620.00 |
| 5,000+ | ₹12.95 | ₹64,750.00 |
5 × ₹29.26
₹146.30
excl. GST
₹172.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
KIA7909PI-U/PF
₹146.30 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -30℃~+75℃@(Ta)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 26.5V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.24 g
Overview
Key features
- Suitable for C-MOS, TTL, and the other digital IC power supply.
- Internal thermal overload protecting.
- Internal short circuit current limiting.
- Output current in excess of 1.0A.
