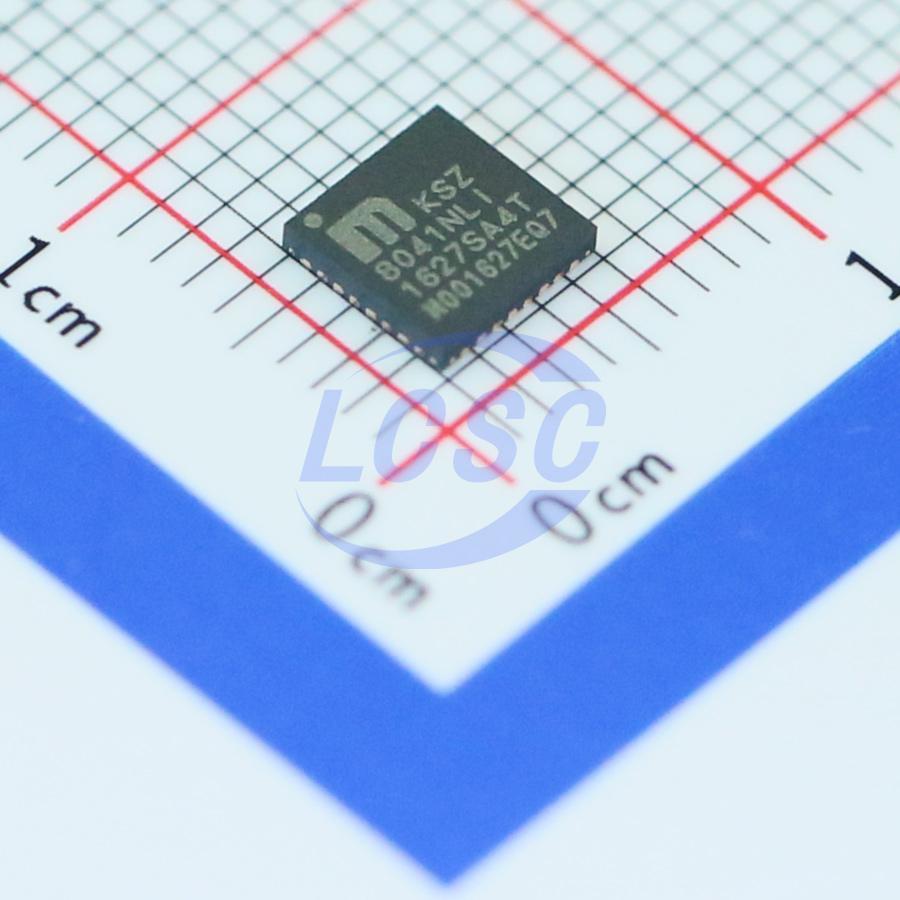

KSZ8041NLI-TR

The KSZ8041NL is a single supply 10Base-T/100Base-TX Physical Layer Transceiver, which provides MII/RMII interfaces to transmit and receive data. An unique mixed signal design extends signaling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. The KSZ8041NL represents a new level of features and performance and is an ideal choice of physical layer transceiver for 10Base-T/100Base-TX applications.

Applications

• Printer
• LOM
• Game Console
• IPTV
• IP Phone
• IP Set-top Box

Key features

• Single-chip 10Base-T/100Base-TX physical layer solution
• Fully compliant to IEEE 802.3μ Standard
• Low power CMOS design, power consumption of <180mW
• HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option
• Robust operation over standard cables
• Power down and power saving modes
• MII interface support
• RMII interface support with external 50MHz system clock
• MIIM (MDC/MDIO) management bus for PHY register configuration
• Interrupt pin option
• Programmable LED outputs for link, activity and speed
• ESD rating (6kV)
• Single power supply (3.3V)
• Built-in 1.8V regulator for core
• Available in 32-pin (5mm x 5mm) MLF package
