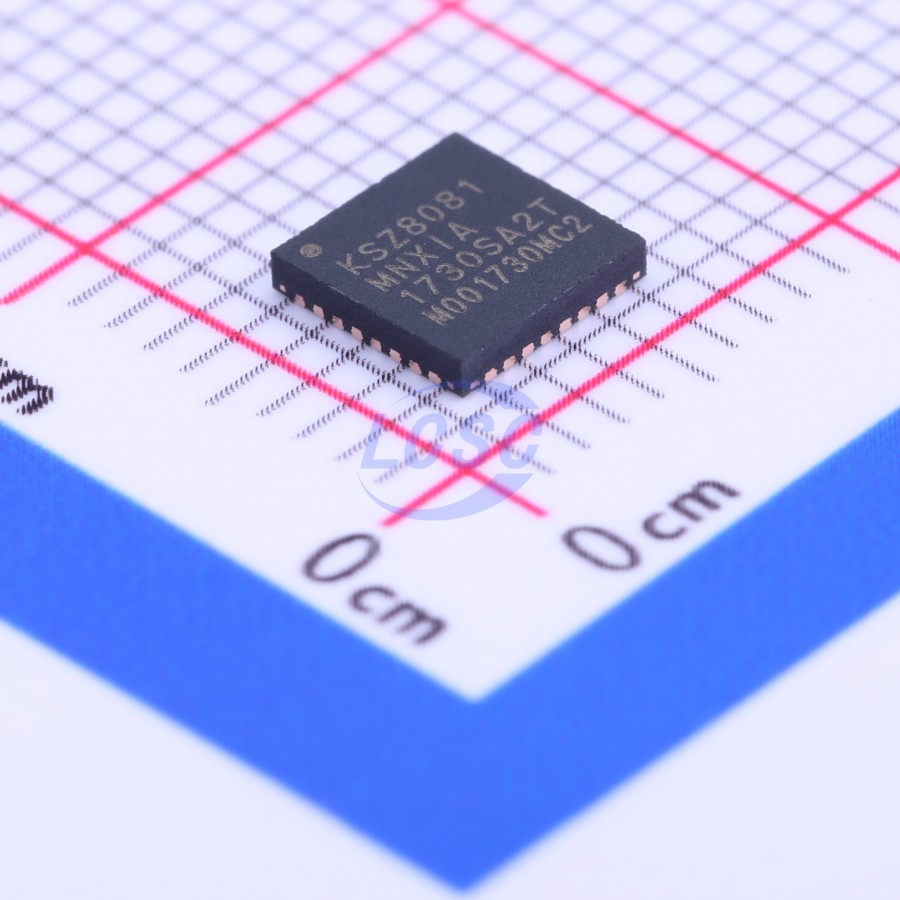

KSZ8081MNXIA-TR

The KSZ8081 is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8081 is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core. The KSZ8081MNX offers the Media Independent Interface (MII) and the KSZ8081RNB offers the Reduced Media Independent Interface (RMII) for direct connection with MII/RMII-compliant Ethernet MAC processors and switches. A 25 MHz crystal is used to generate all required clocks, including the 50 MHz RMII reference clock output for the KSZ8081RNB. The KSZ8081 provides diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between KSZ8081 I/Os and the board. LinkMD TDR-based cable diagnostics identify faulty copper cabling.

Applications

• Game console
• IP phone
• IP set-top box
• IP TV
• LOM
• Printer

Key features

• Single-chip 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet transceiver
• MII interface support (KSZ8081MNX)
• RMII v1.2 Interface support with a 50 MHz reference clock output to MAC, and an option to input a 50 MHz reference clock (KSZ8081RNB)
• Back-to-back mode support for a 100 Mbps copper repeater
• MDC/MDIO management interface for PHY register configuration
• Programmable interrupt output
• LED outputs for link, activity, and speed status indication
• On-chip termination resistors for the differential pairs
• Baseline wander correction
• HP Auto MDI/MDI-X to reliably detect and correct straight-through and crossover cable connections with disable and enable option
• Auto-negotiation to automatically select the highest link-up speed (10/100 Mbps) and duplex (half/full)
• Power-down and power-saving modes
• LinkMD TDR-based cable diagnostics to identify faulty copper cabling
• Parametric NAND Tree support for fault detection between chip I/Os and the board
• HBM ESD rating (6 kV)
• Loopback modes for diagnostics
• Single 3.3V power supply with VDD I/O options for 1.8V, 2.5V, or 3.3V
• Built-in 1.2V regulator for core
• Available in 32-pin (5 mm×5 mm) QFN package
