MICROCHIP

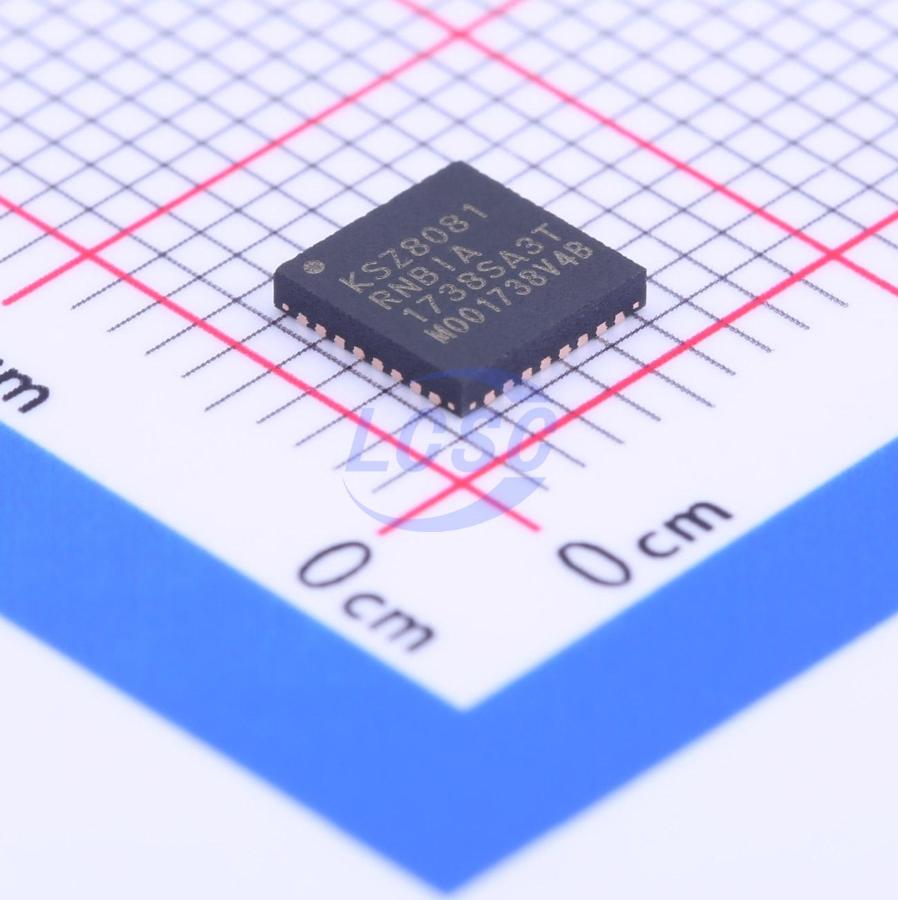

KSZ8081RNBIA-TR

3.3V PHY Transceiver QFN-32-EP(5x5) Drivers, Receivers, Transceivers RoHS

QFN-32-EP(5x5)ROHS3 CompliantActive

10BASE-T/100BASE-TX Physical Layer Transceiver

Manufacturer: MICROCHIP
Manufacturer part #: KSZ8081RNBIA-TR
Store part #: C100018
Package / case: QFN-32-EP(5x5)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,267 in stock

#C100018

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹156.33	₹156.33
10+	₹129.67	₹1,296.70
30+	₹114.92	₹3,447.60
100+	₹98.22	₹9,822.00
500+	₹90.85	₹45,425.00
1,000+	₹87.60	₹87,600.00

Quantity (min 1)

1 × ₹156.33

₹156.33

excl. GST

₹184.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

KSZ8081RNBIA-TR

₹156.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3.3V
Type: PHY Transceiver
Ethernet Speed Standards: 10BASE-T;100BASE-TX
Data Rate: 10Mbit/s;100Mbit/s
Operating Temperature: -40℃~+85℃
Features: Programmable LED indication;Cable diagnostics;Error detection and recovery;Low-power mode
Interface: MII;RMII

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.148 g

Overview

The KSZ8081 is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8081 is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core. The KSZ8081MNX offers the Media Independent Interface (MII) and the KSZ8081RNB offers the Reduced Media Independent Interface (RMII) for direct connection with MII/RMII-compliant Ethernet MAC processors and switches. A 25 MHz crystal is used to generate all required clocks, including the 50 MHz RMII reference clock output for the KSZ8081RNB. The KSZ8081 provides diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between KSZ8081 I/Os and the board. LinkMD TDR-based cable diagnostics identify faulty copper cabling.

Applications

Game console
IP phone
IP set-top box
IP TV
LOM
Printer

Key features

Single-chip 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet transceiver
MII interface support (KSZ8081MNX)
RMII v1.2 Interface support with a 50 MHz reference clock output to MAC, and an option to input a 50 MHz reference clock (KSZ8081RNB)
Back-to-back mode support for a 100 Mbps copper repeater
MDC/MDIO management interface for PHY register configuration
Programmable interrupt output
LED outputs for link, activity, and speed status indication
On-chip termination resistors for the differential pairs
Baseline wander correction
HP Auto MDI/MDI-X to reliably detect and correct straight-through and crossover cable connections with disable and enable option
Auto-negotiation to automatically select the highest link-up speed (10/100 Mbps) and duplex (half/full)
Power-down and power-saving modes
LinkMD TDR-based cable diagnostics to identify faulty copper cabling
Parametric NAND Tree support for fault detection between chip I/Os and the board
HBM ESD rating (6 kV)
Loopback modes for diagnostics
Single 3.3V power supply with VDD I/O options for 1.8V, 2.5V, or 3.3V
Built-in 1.2V regulator for core
Available in 32-pin (5 mm×5 mm) QFN package
