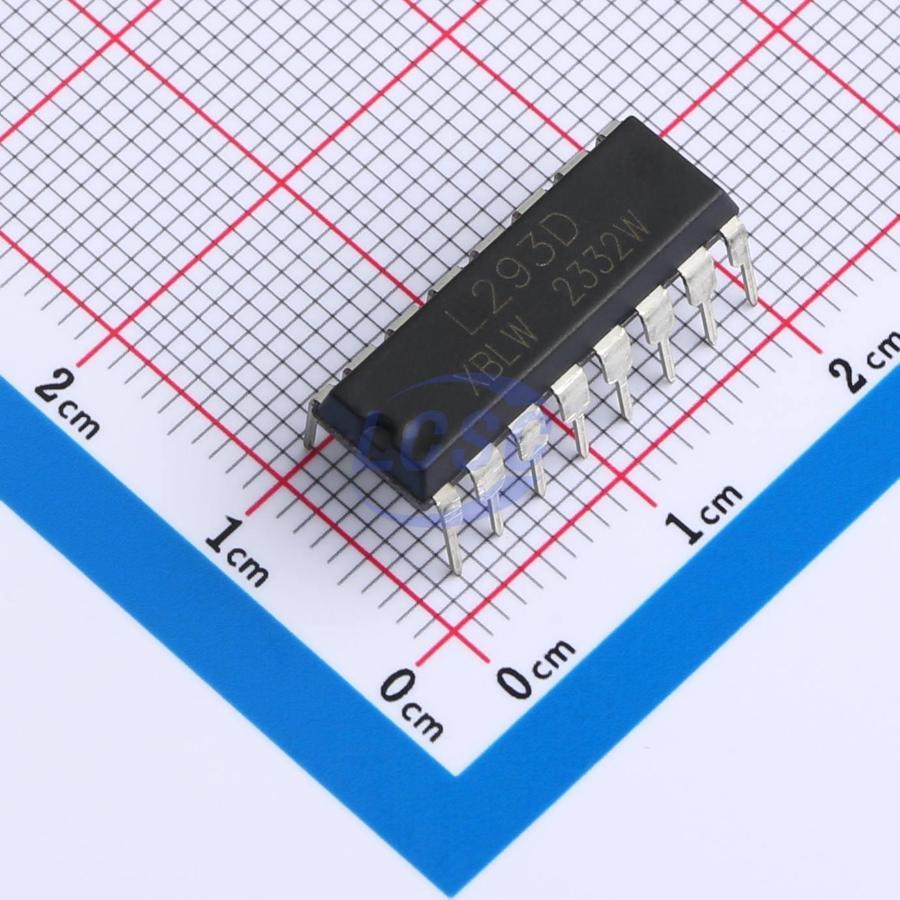

L293D(XBLW)
DIP-16 Motor Drivers, Controllers RoHS
PUSH-PULL FOUR CHANNEL DRIVER WITH DIODES
- Manufacturer
- XBLW
- Manufacturer part #
- L293D(XBLW)
- Store part #
- C18723575
- Package / case
- DIP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
878 in stock
#C18723575
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.67 | ₹62.67 |
| 10+ | ₹47.97 | ₹479.70 |
| 25+ | ₹41.49 | ₹1,037.25 |
| 100+ | ₹33.50 | ₹3,350.00 |
| 500+ | ₹30.05 | ₹15,025.00 |
| 1,000+ | ₹27.88 | ₹27,880.00 |
1 × ₹62.67
₹62.67
excl. GST
₹73.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
L293D(XBLW)
₹62.67 for 1 + GST
Specifications
- Features
- Over temperature protection
- Technology
- No
- Operating Temperature
- -40℃~+150℃
- Output Current
- 600mA
- Control Voltage
- 4.5V~36V
- RDS(on)
- 1.2Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.702 g
Overview
The Device is a monolithic integrated high volt-age, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of chan- nels is equipped with an enable input. A separate supply input is provided for the logic, allowing op- eration at a lower voltage and internal clamp di- odes are included. This device is suitable for use in switching appli- cations at frequencies up to 5 kHz. The L293D is assembled in a 16 lead plastic packaage which has 4 center pins connected to- gether and used for heatsinking The L293WS is assembled in a 20 lead surface mount which has 8 center pins connected to- gether and used for heatsinking.
Key features
- 600mA OUTPUT CURRENT CAPABILITY PER CHANNEL
- 1.2A PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL
- ENABLE FACILITY
- OVERTEMPERATURE PROTECTION
- LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)
- INTERNAL CLAMP DIODES
