STDatasheet (PDF)

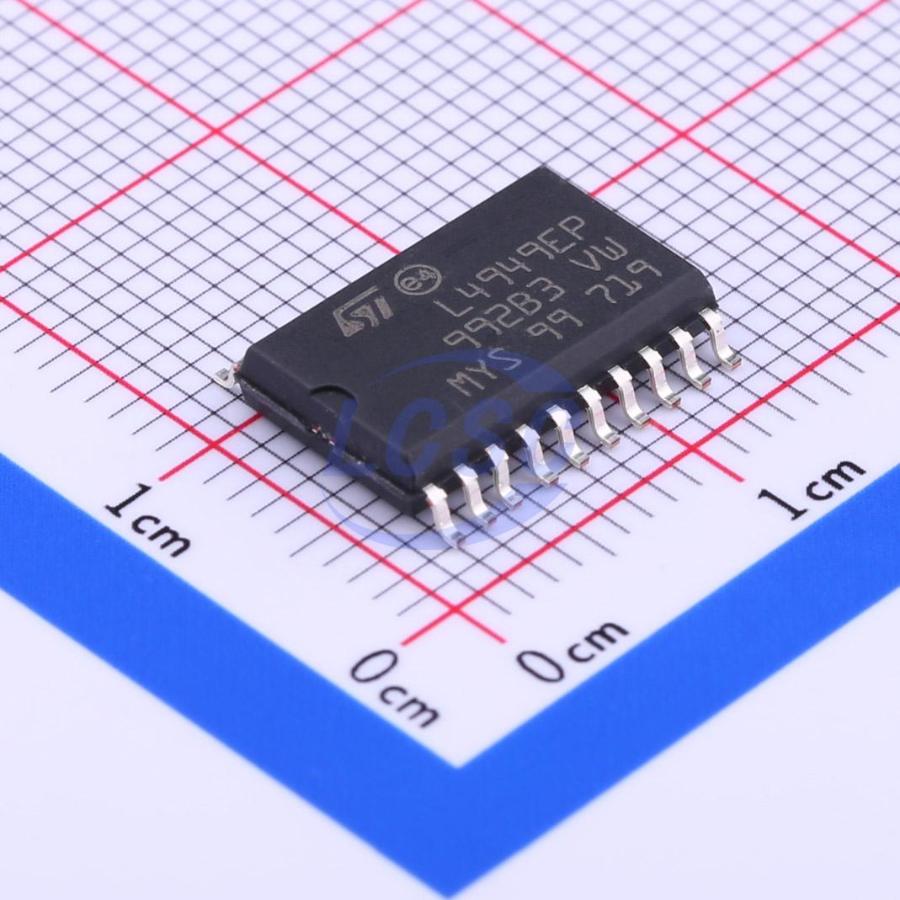

L4949EPTR-E
5V Positive Fixed SO-20-300mil Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-20-300milROHS3 CompliantActive
Multifunctional Ultra-Low Dropout Regulator
- Manufacturer
- ST
- Manufacturer part #
- L4949EPTR-E
- Store part #
- C262891
- Package / case
- SO-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C262891
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹404.24 | ₹404.24 |
| 10+ | ₹342.63 | ₹3,426.30 |
| 30+ | ₹305.92 | ₹9,177.60 |
| 100+ | ₹268.78 | ₹26,878.00 |
| 500+ | ₹251.82 | ₹1,25,910.00 |
| 1,000+ | ₹244.09 | ₹2,44,090.00 |
1 × ₹404.24
₹404.24
excl. GST
₹477.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L4949EPTR-E
₹404.24 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Operating Voltage
- 28V
- Output Current
- 100mA
- Features
- Reset function;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.909 g
Overview
The L4949ED-E and L4949EP-E are monolithic integrated 5V voltage regulators with a very low dropout output and additional functions as poweron reset and input voltage sense. They are designed for supplying the microcomputer controlled systems especially in automotive applications.
Key features
- AEC-Q100 qualified ECOPACK: lead free and RoHS compliant
- Operating DC supply voltage range 5 V - 28 V
- Transient supply voltage up to 40V
- Extremely low quiescent current in standby
- High precision standby output voltage 5V±1%
- Output current capability up to 100 mA
- Very low dropout voltage less than 0.5 V
- Reset circuit sensing the output voltage
- Programmable reset pulse delay with external capacitor
- Voltage sense comparator
- Thermal shutdown and short circuit protections
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L4979MD013TR#C124709ST · SOIC-20-300mil | ST | SOIC-20-300mil | On request | ₹185.22 · 0 in stock | View |
