STDatasheet (PDF)

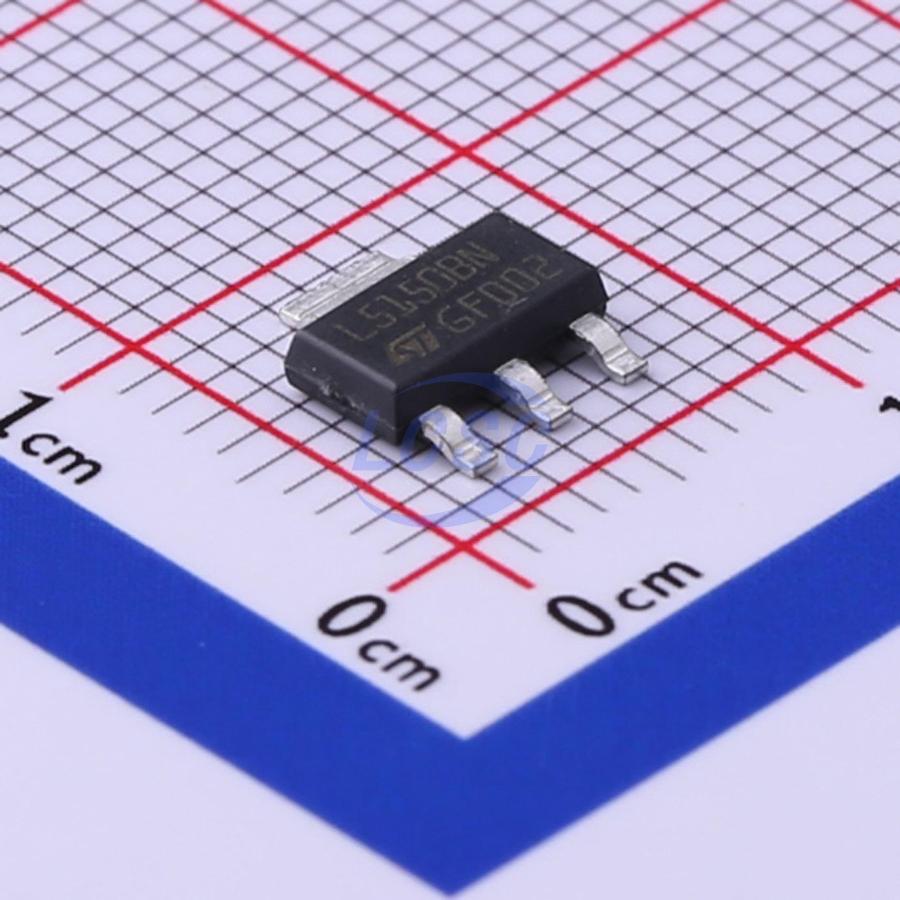

L5150BNTR
5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
5V Low Dropout Regulator
- Manufacturer
- ST
- Manufacturer part #
- L5150BNTR
- Store part #
- C125140
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C125140
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.12 | ₹113.12 |
| 10+ | ₹90.93 | ₹909.30 |
| 30+ | ₹79.84 | ₹2,395.20 |
| 100+ | ₹68.74 | ₹6,874.00 |
| 500+ | ₹57.87 | ₹28,935.00 |
| 1,000+ | ₹54.39 | ₹54,390.00 |
1 × ₹113.12
₹113.12
excl. GST
₹133.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L5150BNTR
₹113.12 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.156 g
Overview
L5150BN is a low dropout linear 5 V regulator particularly suitable for automotive applications. High output voltage accuracy (±2%) is kept over wide temperature range line and load variation. Its sophisticated design allows to have extremely low quiescent current. The maximum input voltage is 40 V. The regulator output current is internally limited and the device is protected against short-circuit, overload and overtemperature conditions. In addition, only low-value ceramic capacitor on output is required for stability.
Key features
- AEC-Q100 qualified
- Operating DC supply voltage range 5.6 V to 40 V
- Low dropout voltage
- Low quiescent current
- Precision output voltage 5 V ±2%
- Very wide stability range with low value output capacitor
- Thermal shutdown and short-circuit protection
- Wide temperature range (Tj = -40 °C to 150 °C)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42642GHTSA2#C3743740Infineon · SOT-223-4 | Infineon | SOT-223-4 | 530 | ₹311.06 · 530 in stock | View |
 | SL4264-2#C2690316Slkor · SOT-223-3 | Slkor | SOT-223-3 | 237 | ₹190.99 · 237 in stock | View |
 | NCV8664ST50T3G#C417290onsemi · SOT-223 | onsemi | SOT-223 | 2,879 | ₹186.74 · 2,879 in stock | View |
 | TPS7B6950QDCYRQ1#C108469TI · SOT-223-4 | TI | SOT-223-4 | 23,620 | ₹44.35 · 23,620 in stock | View |
| NCV8664CST50T3G#C556405onsemi · SOT-223 | onsemi | SOT-223 | 3,881 | ₹157.57 · 3,881 in stock | View | |
