STDatasheet (PDF)

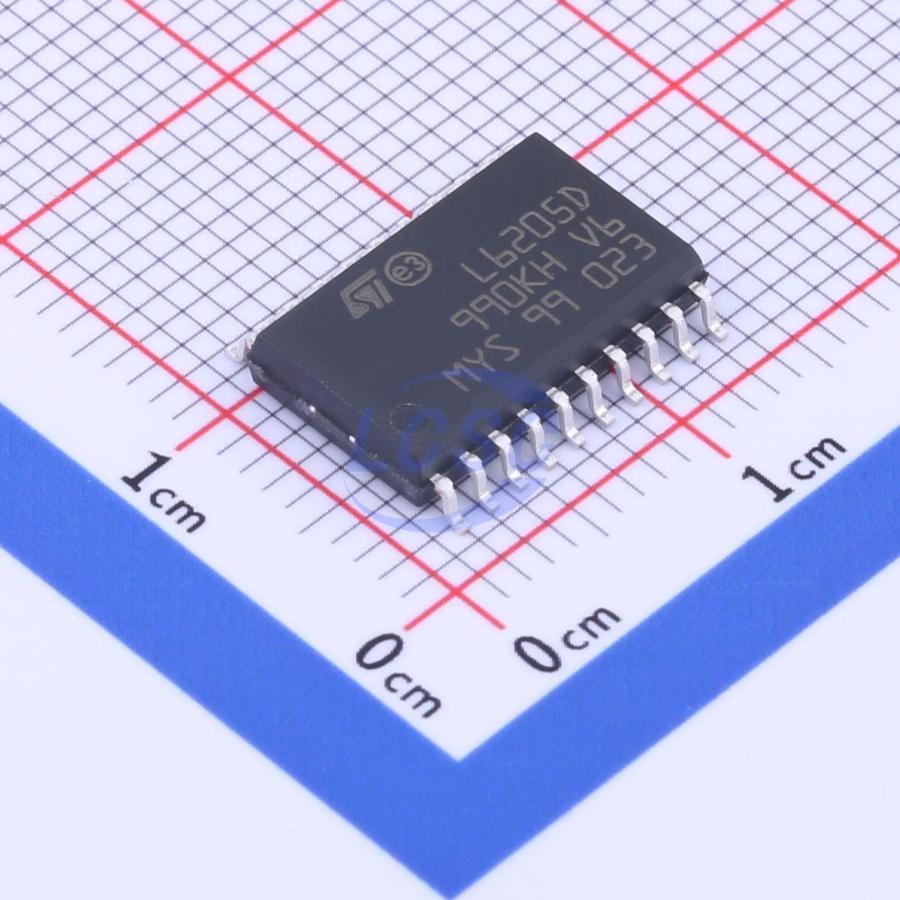

L6205D013TR
SO-20-300mil Motor Drivers, Controllers RoHS
SO-20-300milROHS3 CompliantActive
DMOS Dual Full Bridge Driver
- Manufacturer
- ST
- Manufacturer part #
- L6205D013TR
- Store part #
- C962257
- Package / case
- SO-20-300mil
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,014 in stock
#C962257
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹491.18 | ₹491.18 |
| 10+ | ₹413.52 | ₹4,135.20 |
| 30+ | ₹364.79 | ₹10,943.70 |
| 100+ | ₹315.20 | ₹31,520.00 |
| 500+ | ₹292.58 | ₹1,46,290.00 |
| 1,000+ | ₹282.79 | ₹2,82,790.00 |
1 × ₹491.18
₹491.18
excl. GST
₹579.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L6205D013TR
₹491.18 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection;Built-in charge pump
- Technology
- Yes
- Interface
- Parallel
- Operating Temperature
- -25℃~+125℃
- Output Current
- 2.8A
- RDS(on)
- 300mΩ
- Motor Drive Voltage(Vm)
- 8V~52V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.74 g
Overview
The L6205 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPower BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP20 (16+2+2), PowerSO20 and SO20(16+2+2) packages, the L6205 features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown.
Applications
- BIPOLAR STEPPER MOTOR
- DUAL OR QUAD DC MOTOR
Key features
- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
- 5.6A OUTPUT PEAK CURRENT (2.8A DC)
- RDS(ON) 0.3Ω TYP. VALUE @ Tj = 25 °C
- OPERATING FREQUENCY UP TO 100kHz
- NON DISSIPATIVE OVERCURRENT PROTECTION
- PARALLELED OPERATION
- CROSS CONDUCTION PROTECTION
- THERMAL SHUTDOWN
- UNDER VOLTAGE LOCKOUT
- INTEGRATED FAST FREE WHEELING DIODES
