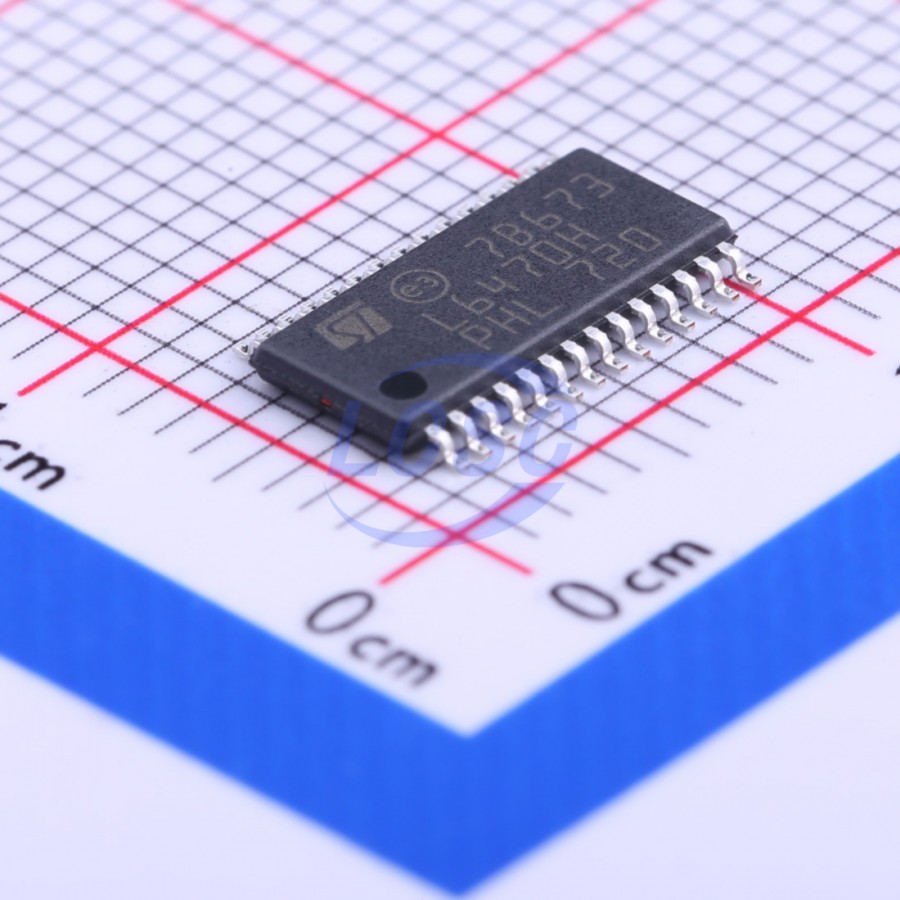

L6470HTR

The L6470 device, realized in analog mixed signal technology, is an advanced fully integrated solution suitable for driving two-phase bipolar stepper motors with microstepping. It integrates a dual low R_DS(on) DMOS full bridge with all of the power switches equipped with an accurate onchip current sensing circuitry suitable for nondissipative current control and overcurrent protection. Thanks to a unique control system, a true 1/128 steps resolution is achieved. The digital control core can generate user defined motion profiles with acceleration, deceleration, speed or target position, easily programmed through a dedicated registers set. All commands and data registers, including those used to set analogue values (i.e. current control value, current protection trip point, deadtime, PWM frequency, etc.) are sent through a standard 5-Mbit/s SPI. A very rich set of protections (thermal, low bus voltage, overcurrent, motor stall) allows the design of a fully protected application, as required by the most demanding motor control applications.

Applications

• Bipolar stepper motors

Key features

• Operating voltage: 8 - 45 V
• Peak output current: 7.0 A (3.0 A RMS)
• Low RDS(on) power MOSFET
• Programmable speed profile and positioning
• Programmable power MOS slew rate
• Up to 1/128 microstepping
• Sensorless stall detection
• SPI interface
• Low quiescent and standby current
• High- and low-side non-dissipative overcurrent protection, programmable
• Two-level overtemperature protection
