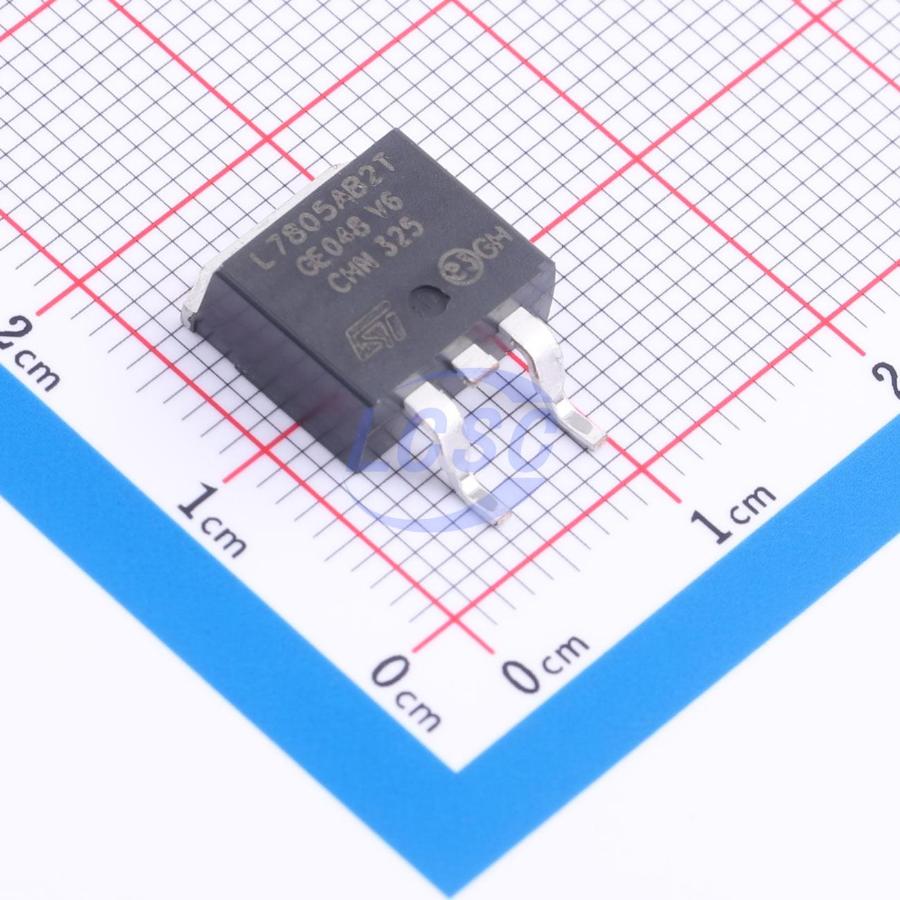

L7805ABD2T-TR
5V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7805ABD2T-TR
- Store part #
- C86206
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68,340 in stock
#C86206
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.53 | ₹192.65 |
| 50+ | ₹30.15 | ₹1,507.50 |
| 150+ | ₹26.06 | ₹3,909.00 |
| 1,000+ | ₹22.42 | ₹22,420.00 |
| 2,000+ | ₹21.42 | ₹42,840.00 |
| 5,000+ | ₹20.82 | ₹1,04,100.00 |
5 × ₹38.53
₹192.65
excl. GST
₹227.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7805ABD2T-TR
₹192.65 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.3mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.577 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7805 TO-263#C54430182KTP · TO-263 | KTP | TO-263 | 530 | ₹32.90 · 530 in stock | View |
 | L7805CD2T-TR#C15077ST · TO-263-2 | ST | TO-263-2 | 4,659 | ₹55.58 · 4,659 in stock | View |
 | L7805CDTR(XBLW)#C22357876XBLW · TO-263 | XBLW | TO-263 | 8,785 | ₹29.36 · 8,785 in stock | View |
 | L7805CKT#C51898335GREENMICRO · TO-263-2 | GREENMICRO | TO-263-2 | 675 | ₹30.44 · 675 in stock | View |
 | LM7805CD#C20618197Siproin · TO-263-2 | Siproin | TO-263-2 | 1,575 | ₹37.49 · 1,575 in stock | View |
