STDatasheet (PDF)

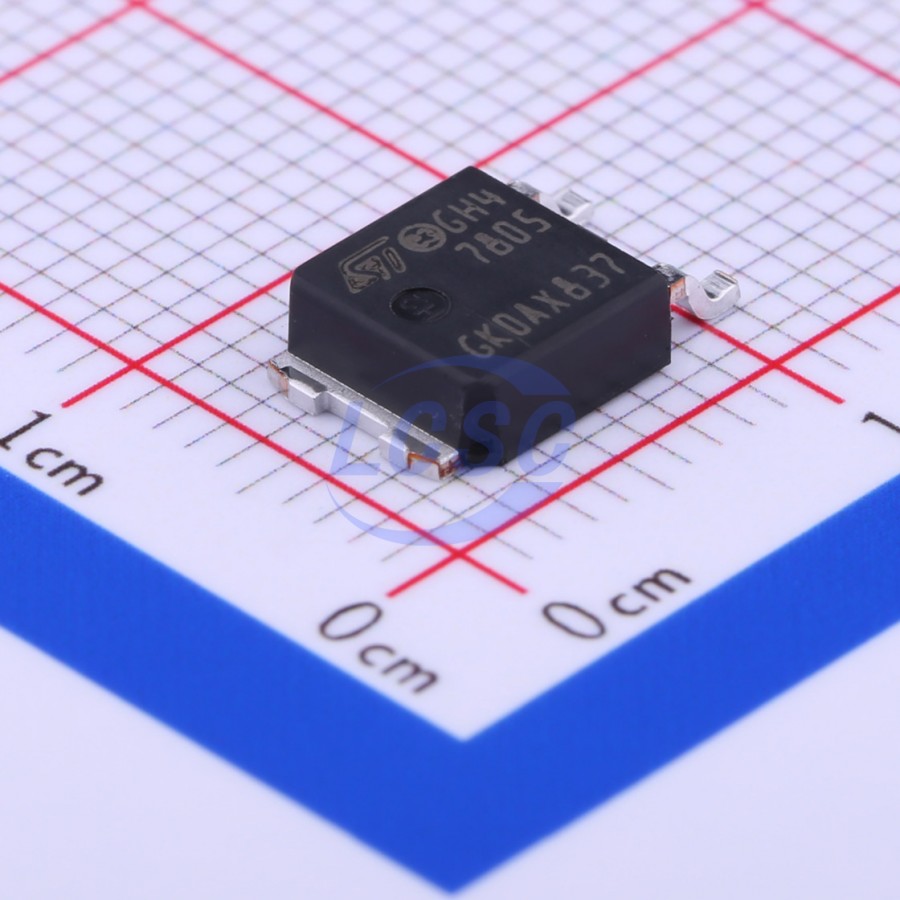

L7805CDT-TR
5V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7805CDT-TR
- Store part #
- C310413
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,16,845 in stock
#C310413
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹58.81 | ₹294.05 |
| 50+ | ₹45.93 | ₹2,296.50 |
| 150+ | ₹40.42 | ₹6,063.00 |
| 500+ | ₹33.54 | ₹16,770.00 |
| 2,500+ | ₹30.47 | ₹76,175.00 |
| 5,000+ | ₹28.63 | ₹1,43,150.00 |
5 × ₹58.81
₹294.05
excl. GST
₹346.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L7805CDT-TR
₹294.05 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.482 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78M05B#C21714299Slkor · TO-252 | Slkor | TO-252 | 3,760 | ₹23.21 · 3,760 in stock | View |
 | CJ7805 3%#C21706JSCJ · TO-252-2(DPAK) | JSCJ | TO-252-2(DPAK) | 77,160 | ₹27.72 · 77,160 in stock | View |
 | MC7805BDT(TOKMAS)#C7525419Tokmas · TO-252-2(DPAK) | Tokmas | TO-252-2(DPAK) | 1,420 | ₹21.51 · 1,420 in stock | View |
 | L7805MDTR(XBLW)#C42376985XBLW · TO-252-2L | XBLW | TO-252-2L | 29,915 | ₹15.62 · 29,915 in stock | View |
 | 78D05#C358374BLUE ROCKET · TO-252 | BLUE ROCKET | TO-252 | 1,175 | ₹26.80 · 1,175 in stock | View |
