STDatasheet (PDF)

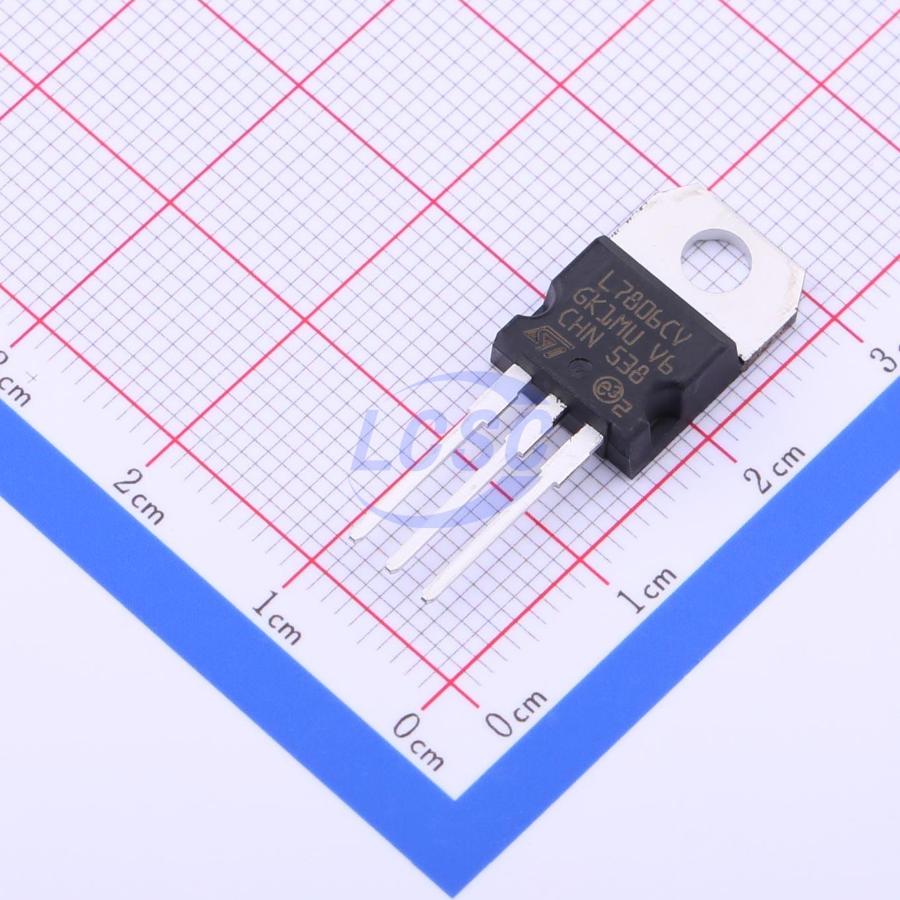

L7806CV-DG
6V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7806CV-DG
- Store part #
- C3796
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C3796
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.14 | ₹265.70 |
| 50+ | ₹42.30 | ₹2,115.00 |
| 150+ | ₹37.65 | ₹5,647.50 |
| 500+ | ₹31.86 | ₹15,930.00 |
| 2,400+ | ₹29.28 | ₹70,272.00 |
| 4,800+ | ₹27.73 | ₹1,33,104.00 |
5 × ₹53.14
₹265.70
excl. GST
₹313.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7806CV-DG
₹265.70 for 5 + GST
Specifications
- Output Voltage
- 6V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 25V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.74 g
Overview
The L7800 series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- OUTPUT CURRENT TO 1.5A
- OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V
- THERMAL OVERLOAD PROTECTION
- SHORT CIRCUIT PROTECTION
- OUTPUT TRANSITION SOA PROTECTION
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7806-1.5A#C25503859TDSEMIC · TO-220-3L | TDSEMIC | TO-220-3L | 355 | ₹24.79 · 355 in stock | View |
 | L7806CV(MS)#C20538895MSKSEMI · TO-220 | MSKSEMI | TO-220 | 180 | ₹28.30 · 180 in stock | View |
 | L7806CVAT#C52204665GREENMICRO · TO-220-3 | GREENMICRO | TO-220-3 | 915 | ₹18.95 · 915 in stock | View |
 | 7806#C19626181YFW · TO-220AB | YFW | TO-220AB | 163 | ₹52.05 · 163 in stock | View |
 | L7806 TO-220#C54430185KTP · TO-220 | KTP | TO-220 | 995 | ₹27.84 · 995 in stock | View |
