STDatasheet (PDF)

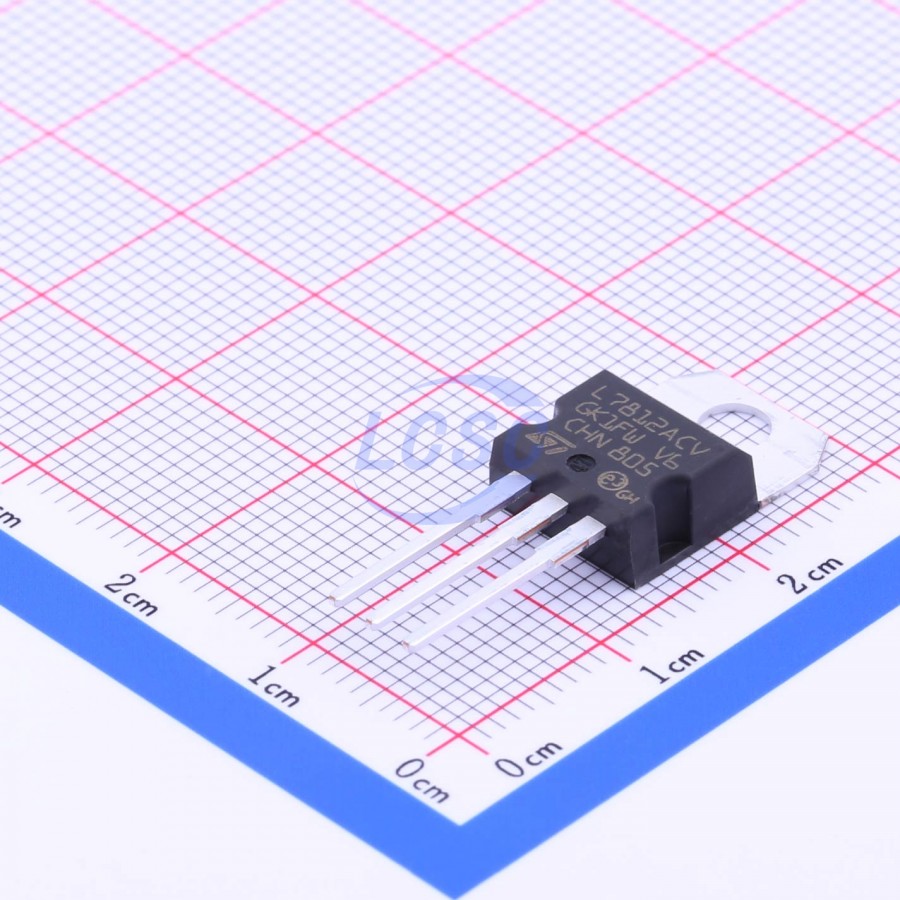

L7812ACV
12V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7812ACV
- Store part #
- C193763
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,348 in stock
#C193763
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.52 | ₹68.52 |
| 10+ | ₹56.81 | ₹568.10 |
| 50+ | ₹51.61 | ₹2,580.50 |
| 100+ | ₹45.33 | ₹4,533.00 |
| 500+ | ₹42.51 | ₹21,255.00 |
| 1,000+ | ₹40.76 | ₹40,760.00 |
1 × ₹68.52
₹68.52
excl. GST
₹80.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7812ACV
₹68.52 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KA7812(KTP)#C54814932KTP · TO-220 | KTP | TO-220 | 910 | ₹33.79 · 910 in stock | View |
 | L7812ABV-DG#C672147ST · TO-220 | ST | TO-220 | 1,990 | ₹96.14 · 1,990 in stock | View |
 | L7812-1.5A#C25503860TDSEMIC · TO-220-3L | TDSEMIC | TO-220-3L | 200 | ₹20.68 · 200 in stock | View |
 | L7812CV(MS)#C20538899MSKSEMI · TO-220 | MSKSEMI | TO-220 | 585 | ₹27.85 · 585 in stock | View |
 | L7812 TO-220#C54430188KTP · TO-220 | KTP | TO-220 | 980 | ₹25.81 · 980 in stock | View |
