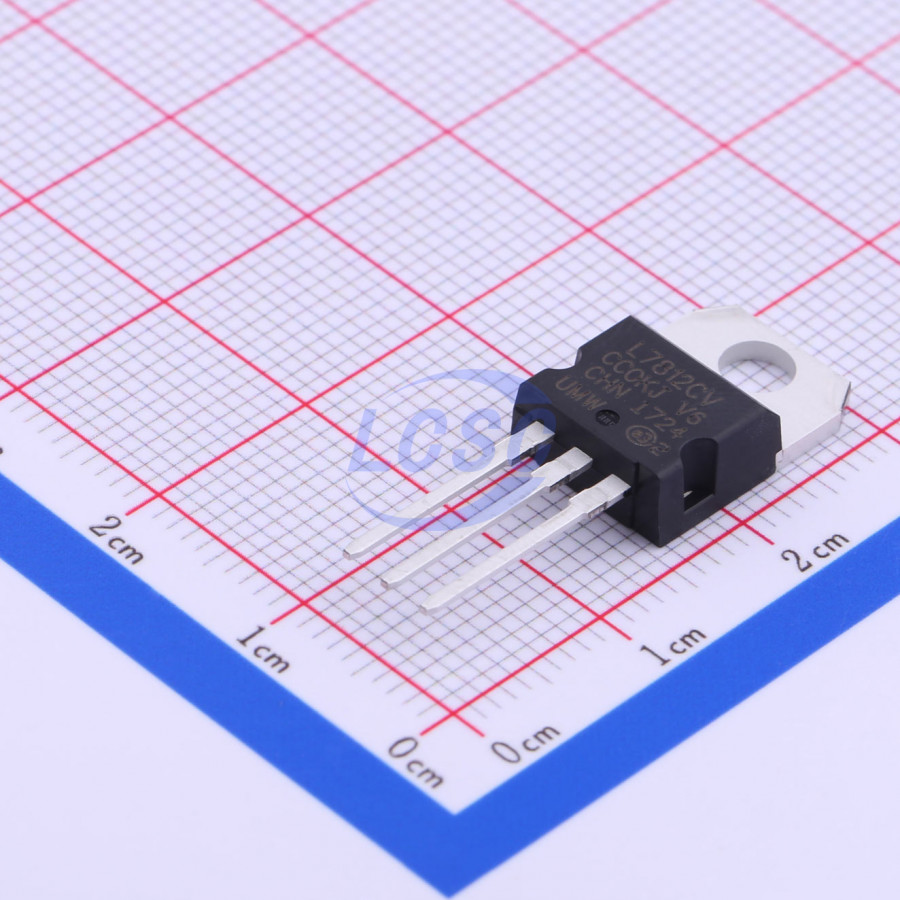

L7812CV(UMW)

Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A TO-220

TO-220ROHS3 CompliantActive

Three-terminal positive voltage regulator

Manufacturer: UMW
Manufacturer part #: L7812CV(UMW)
Store part #: C347292
Package / case: TO-220
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19,580 in stock

#C347292

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹24.28	₹121.40
50+	₹18.72	₹936.00
150+	₹16.37	₹2,455.50
500+	₹13.44	₹6,720.00
2,000+	₹12.15	₹24,300.00
5,000+	₹11.36	₹56,800.00

Quantity (min 5, multiples of 5)

5 × ₹24.28

₹121.40

excl. GST

₹143.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

L7812CV(UMW)

₹121.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 12V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 6mA
Output Configuration: Positive
Output Current: 1.2A
Operating Voltage: 35V
Features: Over Current Protection;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.841 g
