STDatasheet (PDF)

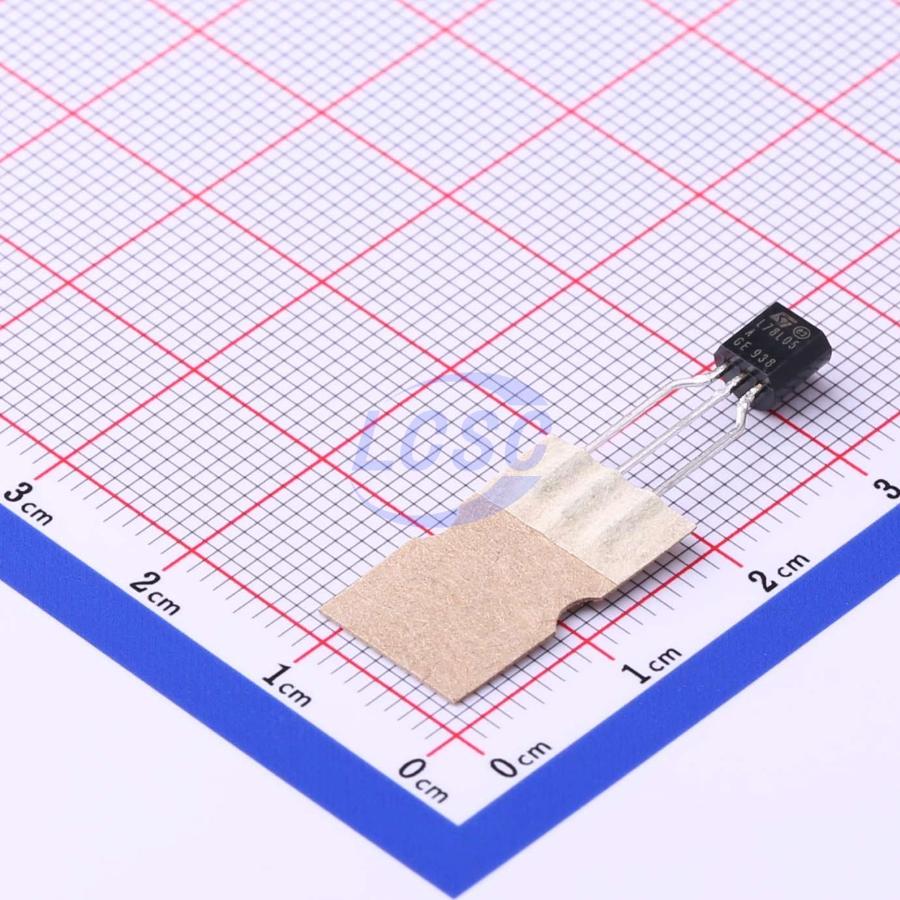

L78L05ABZ-TR
5V Positive Fixed TO-92-2.54mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-2.54mmROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L05ABZ-TR
- Store part #
- C67538
- Package / case
- TO-92-2.54mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,585 in stock
#C67538
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.74 | ₹148.70 |
| 50+ | ₹23.72 | ₹1,186.00 |
| 150+ | ₹21.14 | ₹3,171.00 |
| 500+ | ₹17.93 | ₹8,965.00 |
| 2,000+ | ₹16.50 | ₹33,000.00 |
| 4,000+ | ₹15.64 | ₹62,560.00 |
5 × ₹29.74
₹148.70
excl. GST
₹175.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
L78L05ABZ-TR
₹148.70 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.553 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L05ABZ#C2802522ST · TO-92-3 | ST | TO-92-3 | 5,120 | ₹28.27 · 5,120 in stock | View |
 | MC78L05ABPRAG#C233395onsemi · TO-92-2.54mm | onsemi | TO-92-2.54mm | 40 | ₹85.19 · 40 in stock | View |
 | 78L05ML-T92-B#C87309UTC · TO-92-2.54mm | UTC | TO-92-2.54mm | 950 | ₹12.63 · 950 in stock | View |
 | LP2950-50LPRE3#C129349TI · TO-92-2.54mm | TI | TO-92-2.54mm | 489 | ₹37.08 · 489 in stock | View |
 | AIP78L05JA.TR#C2943317Wuxi I-core Elec · TO-92-2.5mm | Wuxi I-core Elec | TO-92-2.5mm | On request | ₹11.42 · 0 in stock | View |
